Product Details:
|
| Item Name: | SINO KA500-220mm Linear Encoder Cover | Application: | KA500-220mm Linear Encoder Ruler |
|---|---|---|---|
| Usage: | Linear Grating Sensor Protection | Material: | Metal |
| Color: | Silver | Type: | H Type |
| Length: | 220mm | ||
| High Light: | 22cm CNC Machine Accessories,Glass Scale CNC Machine Accessories,H Type Linear Glass Scale |
||

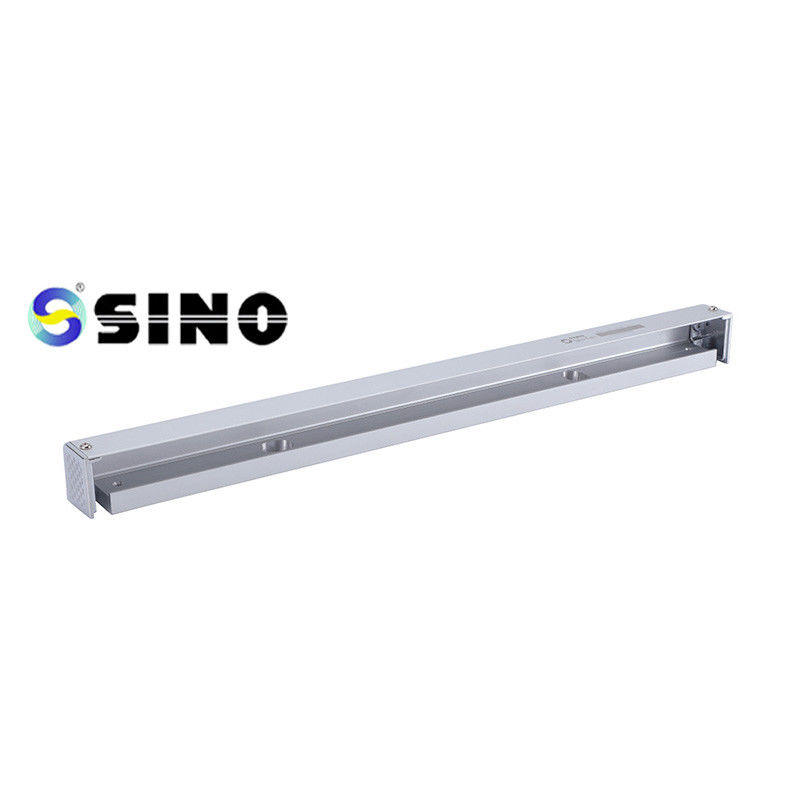

H Type protective covers are used for the installation of SINO KA-500 series Linear glass scale.
The encoder cover shall be securely earthed to ensure the signal integrity.
The scale covers will protect scaling body against swarf,coolant splashes and knocks.
Customized lengths of encoder (L0) can be provided according to the users' needs. (Length:70-470mm)
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA500-70 | 70 | 172 | 182 | KA500-320 | 320 | 422 | 432 |
| KA500-120 | 120 | 222 | 232 | KA500-370 | 370 | 472 | 482 |
| KA500-170 | 170 | 272 | 282 | KA500-420 | 420 | 522 | 532 |
| KA500-220 | 220 | 322 | 332 | KA500-470 | 470 | 572 | 582 |
| KA500-270 | 270 | 372 | 382 |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimensio
