Name: Metal IP53 SINO KA300 Linear Glass Scale , X Type Magnetic Scale Linear Encoder
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: KA300
Availability: InStock

Brand Name:	SINO
Model Number:	KA300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE, RoHS

Item Name:

SINO KA300 Glass Linear Scale

Application:

KA300 Position Linear Ruler

Usage:

Position Measuring Tool

Customized Length:

570mm/620mm/670mm/720mm

Length:

320mm/370mm/420mm/470mm

Function:

Digital Read Out

Resolution:

0.1/0.5/1/5 μm

Sealing Protection:

IP53

Cover Type:

C/D/X Type

Supply Ability:

3000 sets per month

Highlight:

Metal SINO KA300 Linear Glass Scale

IP53 SINO KA300 Linear Glass Scale

X Type Magnetic Scale Linear Encoder

Product Description

SINO KA300-470mm Sealed Linear Scale Optical Encoder for DRO Machine

Package included:

KA300-470mm Optical Linear Scale x 1pc

0.1/0.5/1/5 μm Resolution Available.

Customized lengths of encoder (L0) can be provided according to the users' needs. (Unit of Length:mm)

Model	L0	L1	L2	Model	L0	L1	L2
KA300-70	70	160	176	KA300-570	570	660	676
KA300-120	120	210	226	KA300-620	620	710	726
KA300-170	170	260	276	KA300-670	670	760	776
KA300-220	220	310	326	KA300-720	720	810	826
KA300-270	270	360	376	KA300-770	770	860	876
KA300-320	320	410	426	KA300-820	820	910	926
KA300-370	370	460	476	KA300-870	870	960	976
KA300-420	420	510	526	KA300-920	920	1010	1026
KA300-470	470	560	576	KA300-970	970	1060	1076
KA300-520	520	610	626	KA300-1020	1020	1110	1126

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

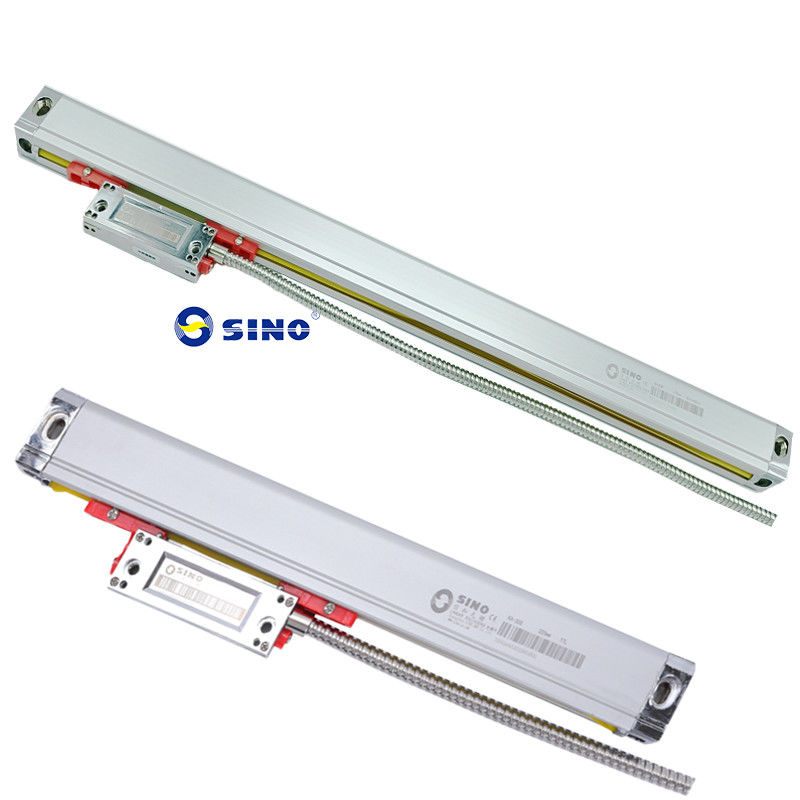

Metal IP53 SINO KA300 Linear Glass Scale , X Type Magnetic Scale Linear Encoder 0

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

Metal IP53 SINO KA300 Linear Glass Scale , X Type Magnetic Scale Linear Encoder 1

Tags:

SINO Glass Linear Encoder

1 Micron Linear Scale CNC

EDM Small Linear Encoder
