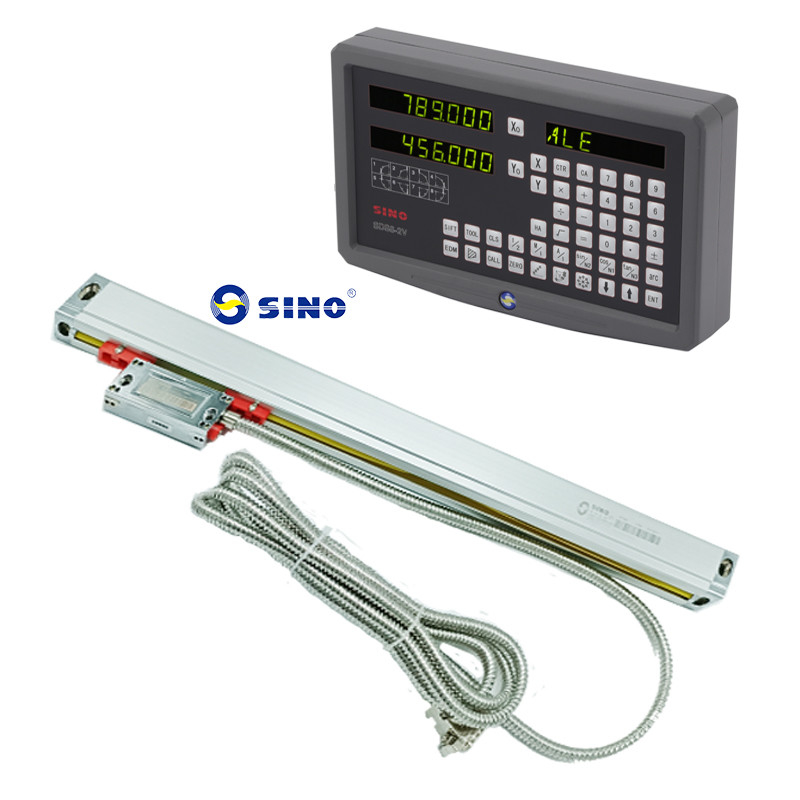

CE IP53 SINO KA300 Linear Glass Scale , Resolution 0.005mm Linear Motion Encoder

CE IP53 SINO KA300 Linear Glass Scale , Resolution 0.005mm Linear Motion Encoder
CE IP53 SINO KA300 Linear Glass Scale , Resolution 0.005mm Linear Motion Encoder

Large Image :  CE IP53 SINO KA300 Linear Glass Scale , Resolution 0.005mm Linear Motion Encoder

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: KA300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

CE IP53 SINO KA300 Linear Glass Scale , Resolution 0.005mm Linear Motion Encoder

Description
Item Name: SINO KA300 Linear Scales Application: KA-300 Series Linear Encoder
Usage: Displacement Sensor Tool Resolution: 0.1/0.5/1/5 μm
Length: Customized Function: CNC Machine Test Equipment
Sealing Class: IP53
High Light:

CE SINO KA300 Linear Glass Scale

,

IP53 SINO KA300 Linear Glass Scale

,

0.005mm Linear Motion Encoder

SINO 0.005mm Resolution Linear Encoder KA300 Glass Displacement Sensor



Package included:

 KA300 Linear Encoder x 1pc

0.1/0.5/1/5 μm Resolution Available.

Customized lengths of encoder (L0) can be provided according to the users' needs.(Length:70-1020mm)



Model L0 L1 L2 Model L0 L1 L2
KA300-70 70 160 176 KA300-570 570 660 676
KA300-120 120 210 226 KA300-620 620 710 726
KA300-170 170 260 276 KA300-670 670 760 776
KA300-220 220 310 326 KA300-720 720 810 826
KA300-270 270 360 376 KA300-770 770 860 876
KA300-320 320 410 426 KA300-820 820 910 926
KA300-370 370 460 476 KA300-870 870 960 976
KA300-420 420 510 526 KA300-920 920 1010 1026
KA300-470 470 560 576 KA300-970 970 1060 1076
KA300-520 520 610 626 KA300-1020 1020 1110 1126



L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension


Detail Information:



CE IP53 SINO KA300 Linear Glass Scale , Resolution 0.005mm Linear Motion Encoder 0



All linear scales will be tested before delivery. Here is a sample of a scale's testing report.



CE IP53 SINO KA300 Linear Glass Scale , Resolution 0.005mm Linear Motion Encoder 1
