SINO 5μm Glass Single Axis Digital Readout Scale Ruler Multipurpose

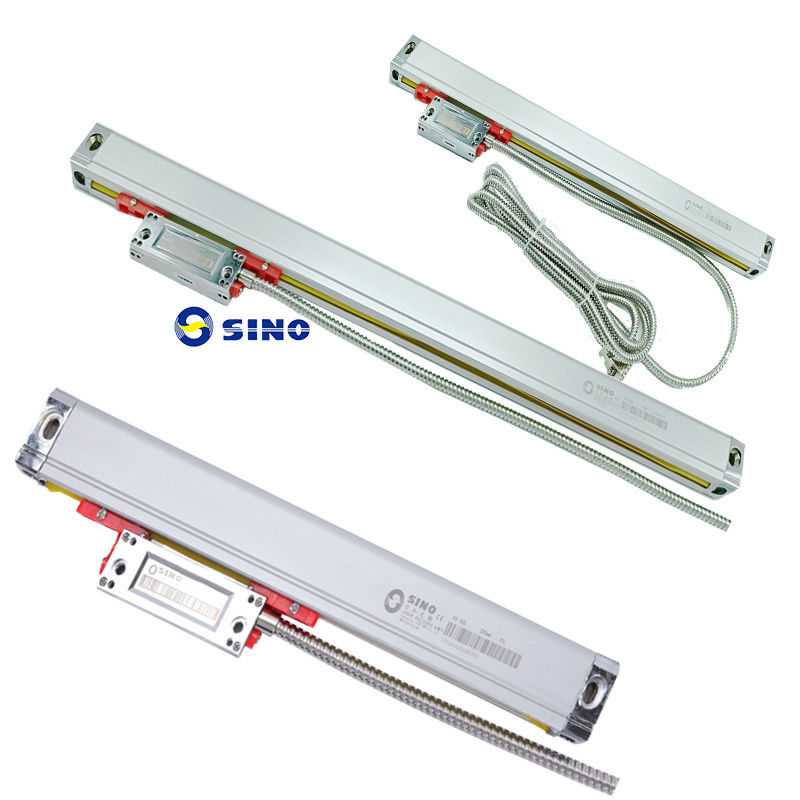

Large Image : SINO 5μm Glass Single Axis Digital Readout Scale Ruler Multipurpose

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS
Model Number:	KA300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

SINO 5μm Glass Single Axis Digital Readout Scale Ruler Multipurpose

Description

Item Name:	SINO KA300 Optical Linear Rulers	Application:	Boring/Milling/Grinding Machine
Usage:	DRO System Position Measuring	Resolution:	0.1/0.5/1/5 μm
Length:	Customized	Sealing Class:	IP53
Output Signal:	TTL/RS-442	Encoder Length:	320mm/420mm/520mm/620mm/720mm
High Light:	SINO Single Axis Digital Readout , 5μm Single Axis Digital Readout , Multipurpose Glass Scale Ruler

SINO 0.1/0.5/1/5μm KA300 Linear Grating Encoder Position Glass Scale Ruler

Package included:

KA300 Grating Linear Encoder x 1pc

0.1/0.5/1/5 μm Resolution Available.

Customized lengths of encoder (L0) can be provided according to the users' needs. (70mm-1020mm)

Model	L0	L1	L2	Model	L0	L1	L2
KA300-70	70	160	176	KA300-570	570	660	676
KA300-120	120	210	226	KA300-620	620	710	726
KA300-170	170	260	276	KA300-670	670	760	776
KA300-220	220	310	326	KA300-720	720	810	826
KA300-270	270	360	376	KA300-770	770	860	876
KA300-320	320	410	426	KA300-820	820	910	926
KA300-370	370	460	476	KA300-870	870	960	976
KA300-420	420	510	526	KA300-920	920	1010	1026
KA300-470	470	560	576	KA300-970	970	1060	1076
KA300-520	520	610	626	KA300-1020	1020	1110	1126

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

SINO 5μm Glass Single Axis Digital Readout Scale Ruler Multipurpose 0

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

SINO 5μm Glass Single Axis Digital Readout Scale Ruler Multipurpose 1
