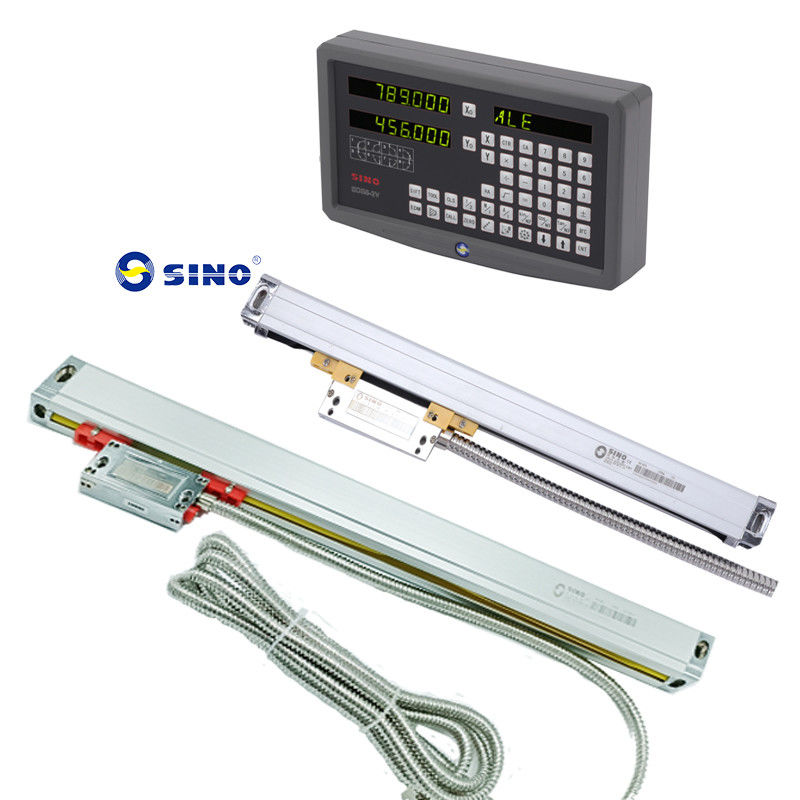

DRO Slim Glass Linear Encoder Resolution 0.5μm TTL Output Signal

Large Image : DRO Slim Glass Linear Encoder Resolution 0.5μm TTL Output Signal

Product Details:

Place of Origin:	Guangzhou, CHINA
Brand Name:	SINO
Certification:	CE,RoHS
Model Number:	KA500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, L/C
Supply Ability:	3000 sets per month

Contact Now

DRO Slim Glass Linear Encoder Resolution 0.5μm TTL Output Signal

Description

Item Name:	SINO KA500-470mm Linear Scale	Application:	Lathe/Grinder/Boring Machine DRO
Usage:	Linear Encoder Tool	Feature:	Digital Readout Accessory
Sealing Protection:	IP53	Output Signal:	TTL/RS-442
Length:	70-470mm	Resolution:	0.5μm /1μm /5 μm
High Light:	Slim Glass Linear Encoder , 0.5μm Glass Linear Encoder , TTL DRO Linear Encoder

SINO 1um Digital Linear Encoders KA500 Slim Scale Displacement Sensor

Package included:

KA500 Linear Ruler x 1pc

0.5/1/5 μm Resolution Available.

Customized lengths of encoder (L0) can be provided according to the users' needs.(Length:70-470mm)

Model	L0	L1	L2	Model	L0	L1	L2
KA500-70	70	172	182	KA500-320	320	422	432
KA500-120	120	222	232	KA500-370	370	472	482
KA500-170	170	272	282	KA500-420	420	522	532
KA500-220	220	322	332	KA500-470	470	572	582
KA500-270	270	372	382

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Detail Information:

DRO Slim Glass Linear Encoder Resolution 0.5μm TTL Output Signal 0

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

DRO Slim Glass Linear Encoder Resolution 0.5μm TTL Output Signal 1
