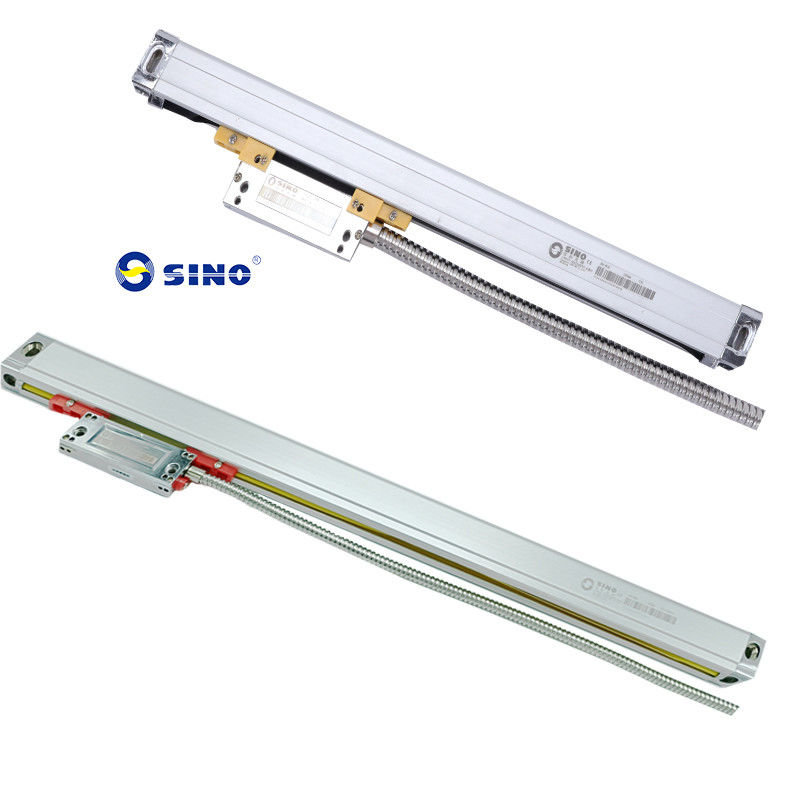

Optical TTL Slim Lathe Linear Scale Practical For Displacement Sensor

Optical TTL Slim Lathe Linear Scale Practical For Displacement Sensor
Optical TTL Slim Lathe Linear Scale Practical For Displacement Sensor

Large Image :  Optical TTL Slim Lathe Linear Scale Practical For Displacement Sensor

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: KA500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month

Optical TTL Slim Lathe Linear Scale Practical For Displacement Sensor

Description
Item Name: SINO KA500 Glass Linear Scale Application: Lathe/Grinder/Milling Machine
Feature: Digital Readout DRO Accesory Sealing Protection: IP53
Output Signal: TTL/RS-442 Length: 70-470mm
Resolution: 0.5μm /1μm /5 μm Usage: Displacement Sensor
High Light:

Optical Lathe Linear Scale

,

Slim Lathe Linear Scale

,

Practical TTL Linear Scale

SINO KA500-220mm Linear Optical Scale TTL Slim Encoders EDM Lathe DRO Tool



Package included:

KA500 Linear Scale x 1pc

0.5/1/5 μm Resolution Available.

Customized lengths of encoder (L0) can be provided according to the users' needs. (Length:70-470mm)



Model L0 L1 L2 Model L0 L1 L2
KA500-70 70 172 182 KA500-320 320 422 432
KA500-120 120 222 232 KA500-370 370 472 482
KA500-170 170 272 282 KA500-420 420 522 532
KA500-220 220 322 332 KA500-470 470 572 582
KA500-270 270 372 382



L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension




Detail Information:



Optical TTL Slim Lathe Linear Scale Practical For Displacement Sensor 0







All linear scales will be tested before delivery. Here is a sample of a scale's testing report.



Optical TTL Slim Lathe Linear Scale Practical For Displacement Sensor 1
