Product Details:
|
| Product Name: | SINO KA800 | Feature: | KA800 Magnetic Encoder |
|---|---|---|---|
| Type: | Encoder 2 Axis | Scale Model: | KA-800M Magnet |
| Output Signal: | EIA422A Signal | Resolution: | 0.001mm /1um |
| Max. Moving Speed:: | 30m/min | Protect: | IP67 |
| Material: | Aluminum Alloy& Magnet | Effective Length: | 120mm To 100meter |
| High Light: | Aluminum Alloy Digital Linear Measuring Scale,EIA422A Digital Linear Measuring Scale,2 Axis DRO Linear Scale |
||

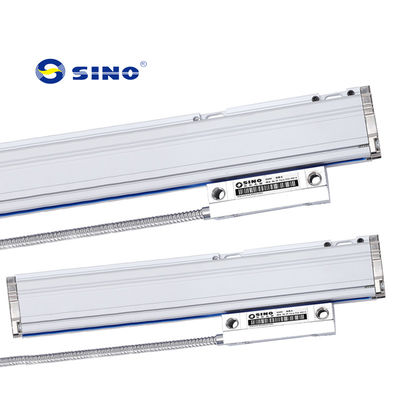

SINO KA800 Magnetic Encoder
KA800M magnetic scale mainly consists of the body and the reading head. The body
consists of the head section, the standard section, and the end section. Only one
head and end sections are provided, and the number of standard sections may vary as the
measuring length changes
Technical parameter
| Magnetic Encoders | |
| Reference signal | Each 5mm(C) |
| Pitch | 1mm |
| Ruler tape specifications | 5+5mm |
| Resolution | 1µm |
| Operating voltage | 5V+±5% |
| Cable | 5 core or 8 core |
| Output form | TTL or RS-422 |
| Max. Moving speed | 30m/min |
| Operating temperature | -20～70℃ |
| High precision of up | ± 10µm / 300mm or ± 20µm / 1000mm |
| Measurement length | 170mm–100m |
| Humidity | 100％ Non-condensing |
| Standard reading head provides cable | 3m |
Encoder Magnetic Scale Application
Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)
Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glass-working machine, Material handling
Encoder Magnetic Mcale Application
Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)
Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glass-working machine, Material handling
Detail image:
Why choose us?
Magnetic scale can be cut as your requirement
Fully sealed read-head with the perfect structure of the profile makes it match IP67 protection class
Advanced technician and inner structure
Automatic gain control technician reduced the requirement for installation, The gap between the reader and tape can be 3mm (5 microns)
Questions & Answer :
1, What’s max measurement length?
Measurement length up to 100,000mm
2, What are the length 120mm~ 100000mm represent for ?
Answer : All these length mean table travel length ( table moving size , NOT table size ) of the machine x y z axis . You may need to add extra 5.5 inch for total length .
3, If i need full set of 2 Axis dro with scales for my lathe machine , how should i purchase them ?
Answer : You can select, they are " 1pc 2 Axis dro " " Travel length **mm of linear encoder or magnetic encoder" " Travel length ***mm" , then you will receive what you want .
4, My machine x axis moving length is 260mm , and y axis moving length is 530mm , can you offer this kind length that not listed in the options ?
Answer : Each scale measuring range has 20mm increment. That means the 250mm scale measuring range can reach up to 270mm . So you can select the 270mm scale and 570mm scale for your machine .
5, If i only buy 1 piece scale separately , can i get the user manual ?
Answer : The user manual comes with DRO , But you can contact the seller to get download .
6, What should I choose for my lathe or mill ?
Answer : The lathe usually is a 2 axis readout while the mill can be either 2 axis or 3 axis
7, Can I cut the scale if it's too long for my machine ?
Answer : Technicality NO. if you are novice , otherwise , the scale may probably be damaged and cannot be used
8, Are they all ship by Fed Ex, UPS, DHL ?
Answer : Yes. Standard FedEx support and others are available
