Enclosed Type 30m/min Magnetic DRO Scales , Aluminum Absolute Linear Encoder

Description

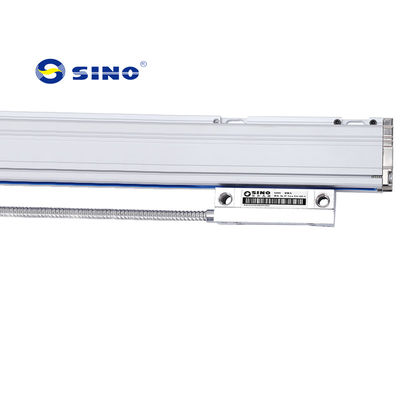

Item Name: SINO KA800M Feature: SINO KA800M Magnetic Scale
Type: Enclosed Type Magnet Encoder Scale Model: KA-800M
Output Signal: TTL Signal Resolution: 0.001mm/1 Micron
Installation: 1pcs Or Connection Protect: IP67
Material: Aluminum+magnet Effective Length: 120mm To 100meter
High Light:

Enclosed Magnetic DRO Scales

,

30m/min Magnetic DRO Scales

,

Aluminum Absolute Linear Encoder

SINO KA800M Magnetic Scale Enclosed Type Magnet Encoder For AS5600





SINO KA800M Magnet Scale



In order to determine the direction of movement, an offset exists between these two increment sensors,
and the sine output signals of the sensors have a phase shift of 90°, which can be considered
sine and cosine signals. Both the signals are converted into A/B pulses by the magnetic
head, which is then sent to the controller (RS422) to generate differential signals



Technical parameter



Magnetic Encoders
Reference signal Each 5mm(C)
Pitch 1mm
Ruler tape specifications 5+5mm
Resolution 1µm
Operating voltage 5V+±5%
Cable 5 core or 8 core
Output form TTL or RS-422
Max. Moving speed 30m/min
Operating temperature -20~70℃
High precision of up ± 10µm / 300mm or ± 20µm / 1000mm
Measurement length 170mm–100m
Humidity 100% Non-condensing
Standard reading head provides cable 3m





Encoder Magnetic Scale Application



Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)

Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glass-working machine, Material handling




Encoder Magnetic Mcale Application



Heavy lathes, Milling machine, Drilling, Grinder machine, EDM (electrical discharge machine)

Machining Centers, PVC Cutting Machine, Wood Cutting Machine, Glass-working machine, Material handling





Detail image:



Enclosed Type 30m/min Magnetic DRO Scales , Aluminum Absolute Linear Encoder 0Enclosed Type 30m/min Magnetic DRO Scales , Aluminum Absolute Linear Encoder 1





Enclosed Type 30m/min Magnetic DRO Scales , Aluminum Absolute Linear Encoder 2





Why choose us?



Magnetic scale can be cut as your requirement

Fully sealed read-head with the perfect structure of the profile makes it match IP67 protection class

Advanced technician and inner structure

Automatic gain control technician reduced the requirement for installation, The gap between the reader and tape can be 3mm (5 microns)





Questions & Answer :



1, What’s max measurement length?

Measurement length up to 100,000mm

2, What are the length 120mm~ 100000mm represent for ?

Answer : All these length mean table travel length ( table moving size , NOT table size ) of the machine x y z axis . You may need to add extra 5.5 inch for total length .

3, If i need full set of 2 Axis dro with scales for my lathe machine , how should i purchase them ?

Answer : You can select, they are " 1pc 2 Axis dro " " Travel length **mm of linear encoder or magnetic encoder" " Travel length ***mm" , then you will receive what you want .

4, My machine x axis moving length is 260mm , and y axis moving length is 530mm , can you offer this kind length that not listed in the options ?

Answer : Each scale measuring range has 20mm increment. That means the 250mm scale measuring range can reach up to 270mm . So you can select the 270mm scale and 570mm scale for your machine .

5, If i only buy 1 piece scale separately , can i get the user manual ?

Answer : The user manual comes with DRO , But you can contact the seller to get download .

6, What should I choose for my lathe or mill ?

Answer : The lathe usually is a 2 axis readout while the mill can be either 2 axis or 3 axis

7, Can I cut the scale if it's too long for my machine ?

Answer : Technicality NO. if you are novice , otherwise , the scale may probably be damaged and cannot be used

8, Are they all ship by Fed Ex, UPS, DHL ?

Answer : Yes. Standard FedEx support and others are available
