Product Details:
|
| Item Name: | SINO SDS5-4VA Digital Readout System | Usage: | 3 Axes CNC Lathe |
|---|---|---|---|
| System: | SDS5-4V Digital Readout | Scale Model: | KA-600/KA-300/KA-500 |
| Signal Output: | EIA-422-A/RS422/TTL | Resolution: | 0.0005mm/0.005mm / 0.001mm |
| Encoder Length: | 70- 3000mm | Display Type: | TFT LCD |
| Voltage: | 50-60Hz / 100-240V For Counter; 5V For Scales | ||
| High Light: | 3 Axes CNC Digital Readout,TFT CNC Digital Readout,Multipurpose Linear Scale DRO System |
||
Package included:

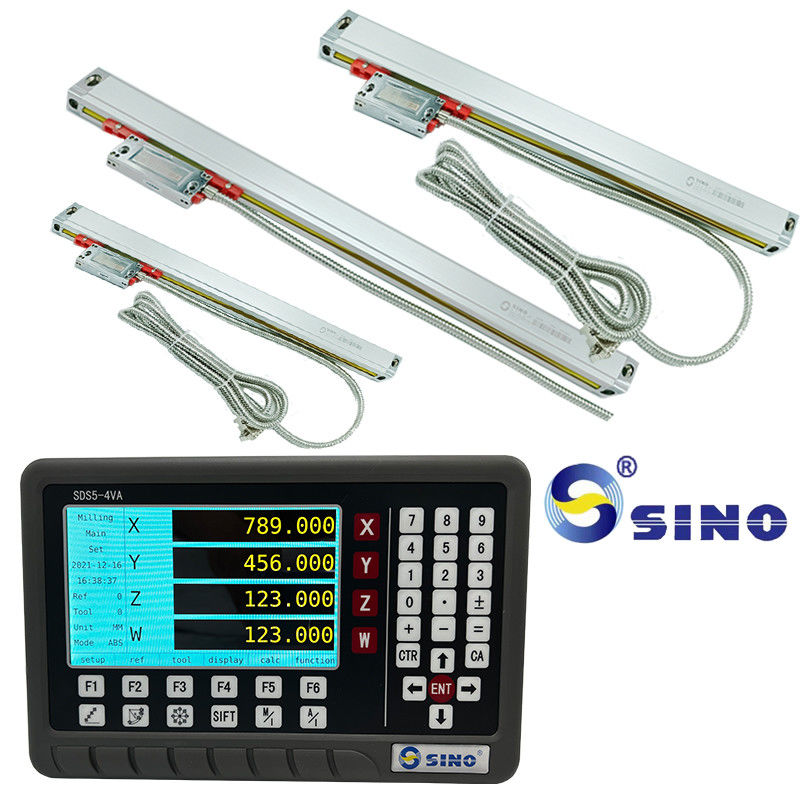

SDS5-4VA Digital Readout Display x1pc
KA-series linear glass scales x3 pc (KA-600,KA-300,KA-500).
And the standard Length of Scale Signal cable is 3000mm, Customized lengths of extension Signal cables can be provided
according to the users' needs.(1M to 10M)
Package list:
| Item name | 3 axes digital Readout system |
| DRO Model | SDS5-4VA |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis z | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis z1 | KA-600 / KA-300: 70-3000mm |
| Rack for DRO | Rack L400 |
| Protection cover for X scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Protection cover for Y scale | Type D / M |
| Bracket for scales |
T-bracket (1 sets) |
| Others | Cable / Screws / Manual |
Detail Information:
Pin Description:
All linear scales will be tested before delivery. Here is a sample of a scale's test report.
