Name: 28 Bits Hollow Shaft Absolute Encoder 60mm Hollow Shaft Through Hole
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: AD-60MA
Availability: InStock

Brand Name:	SINO
Model Number:	AD-60MA
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

AD-60MA Hollow Shaft Absolute Encoder

Measuring Method:

Absolute

Application:

Swivel Heads,Rotary Tables On Machine Tools

Applications:

Collaborative Robots,C-axes Of Lathes,gears Measuring Machines

Shaft Diameter:

60mm

Lines:

32768

Protection Class:

IP54

Theory:

Optical

Position Per Revolution:

268435456 (28 Bits)

Accuracy:

High Accuracy

Supply Ability:

3000 sets per month

Highlight:

28 Bits Hollow Shaft Absolute Encoder

60mm Hollow Shaft Absolute Encoder

Product Description

28 Bits Hollow Shaft 60mm Hollow Shaft Through Hole Absolute Encoder

Name	60mm Hollow Shaft Absolute Encoder
Brand	ACCUGLEN
Model	AD-60MA
Measurement method	Absolute
Hollow shaft diameters	60mm
Applications	collaborative robots Telescopes Rotary tables on machine tools Swivel heads on machine tools C-axes of lathes
Advantages	High accuracy Easy mounting Various specifications IP54 Protection class

Sealed Absolute Angle Encoders
Model	AD-20MA	AD-35MA	AD-60MA	AD-100MA
Hollow shaft diameters(mm)	20mm	35mm	60mm	100mm
Lines	16384		32768	65536
Position per revolution	134217728(27 bit)		268435456(28 bit)	536870912(29 bit)
Allow rotating speed	≤1800		≤900	≤400
system Accuracy	A(±1"~±3").B(±3"~±5").C(±5"~±8")
lnterfaces	BiS C protocol

MODEL	SHAFT DIAMETER D1	D2	D3	D4	D5	D6	D7	D8	H1	H2	H3	H4
AD-20M	20g7(-0.007/-0.028)	32	110	100	36	28	M20×0.5	85	36	3	30	6
AD-35M	35g7(-0.009/-0.034)	52	110	100	45	39	M35×1	85	36	3	30	6
AD-60M	60g7-0.010/-0.040)	80	165	158	76	66	M60×1	148	39	3	32.5	6.5
AD-100M	100g7(-0.012/-0.047)	120	200	188	115	106	M100×1.5	180	39	3.5	32.5	6.5

Detail Information:

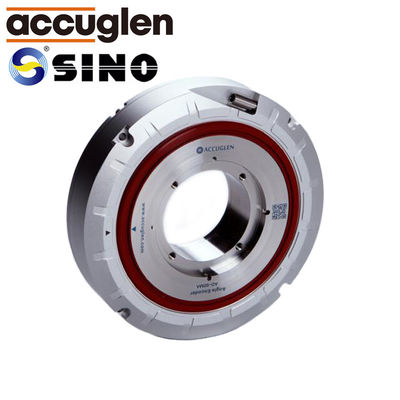

28 Bits Hollow Shaft Absolute Encoder 60mm Hollow Shaft Through Hole 1
