3 Axis Digital Readout

SINO 3 Axis Digital Readout SDS2-3VA DRO Suitable For Milling Lathe

All Category

CNC Machine Accessories

Ms. Berlina

sino_trade@163.com

18620615002

Contact Now

SINO 3 Axis Digital Readout SDS2-3VA DRO Suitable For Milling Lathe

Brand Name:	SINO
Model Number:	SDS2-3VA DRO
MOQ:	1 SET
Price:	Negotiable
Packaging Details:	Cartons
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GUANGZHOU

Certification:

CE,RoHS

Name:

SDS2-3VA DRO

DRO Material:

Plastic

Signal:

TTL/RS-422

Voltage:

100-240V

Display:

LED Screen DRO

Usage:

Machine

Supply Ability:

3000 sets per mouth

Highlight:

Milling Lathe 3 Axis Digital Readout

3 Axis Digital Readout

Product Description

SINO 3 Axis Digital Readout SDS2-3VA DRO Suitable For Milling Lathe

SDS2-3VA is an useful TFT DRO. It also employs the newest 16 bits SCM technology and is allowed to input the high frequency of A/B signals up to 5MHz. That can be use on most of the machine, like the floor boring machine, lathe, milling machine,grinding machine,boring machine and so on. The plastic material is lighter and easier to carry. SDS2-3VA equips a TFT LCD screen to make work more easily.

Strengthen Functions:

Enlarge the calculator function:

SDS2 series can change the decimal digits to be three, four or five digits to improve the calculating precision.

Non-linear error compensation:

The system has maximum 40 sections non-linear error compensation to improve the machining precision.

The numbers of decimal digits can be chosen in inch mode:

4 / 5 decimal digits can be chosen in inch mode. 4 digits can satisfy long scale requirement, and 5 digits can satisfy high precisions display.

Specifications :

range	AC 80V~260V; 50~60Hz, US Plug available
Power consumption	15VA
Operating temperature	0~45 degrees centigrade
Storage temperature	30~70 degrees centigrade
Readout allowable input signal	TTL/RS422 square wave
Allowable input signal frequency	Less than 5MHz
Max resolution of digital display length	0.5µm
Min resolution of digital display angle	0.0001/pulse

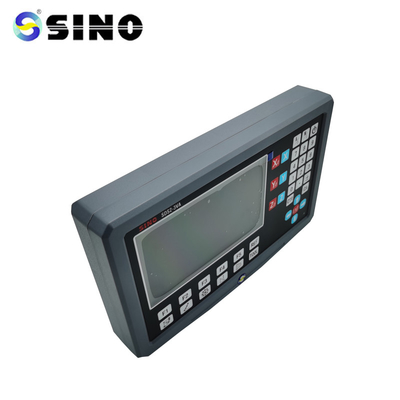

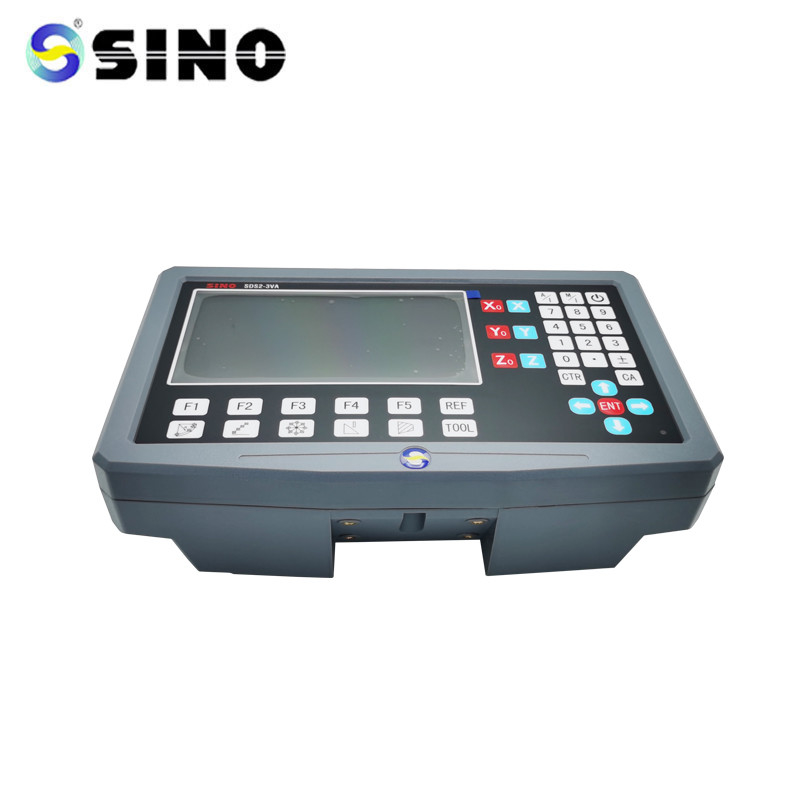

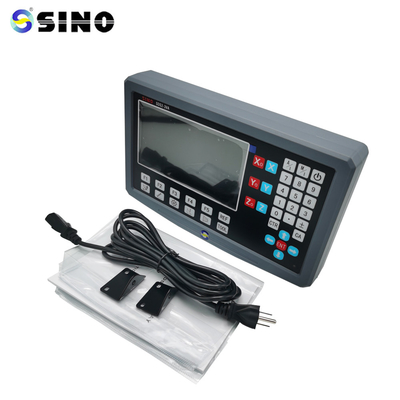

SINO 3 Axis Digital Readout SDS2-3VA DRO Suitable For Milling Lathe 0
