SINO KA500-220mm Glass Scale Linear Encoder Suitable For Milling Machine
  • name
  • name
  • name
  • name

SINO KA500-220mm Glass Scale Linear Encoder Suitable For Milling Machine

Brand Name: SINO
Model Number: SINO KA500-220mm
MOQ: 1 SET
Price: Negotiable
Packaging Details: Cartons
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GUANGZHOU
Certification:
CE,RoHS
Name:
SINO KA500-220mm
Suitable:
Milling、Boring、Lathe Machine
Material:
Metal
Measure Length:
70-470mm
Protection Class:
IP53
Resolution:
0.5/1/5um
Output:
TTL/RS-422
Max Of Measuring Speed:
60m/min
Cross Section:
18*20mm
Supply Ability:
3000 sets per mouth
Highlight:

SINO KA500 Glass Linear Encoder

,

220mm Glass Linear Encoder

,

Milling Machine Glass Linear Encoder

Product Description

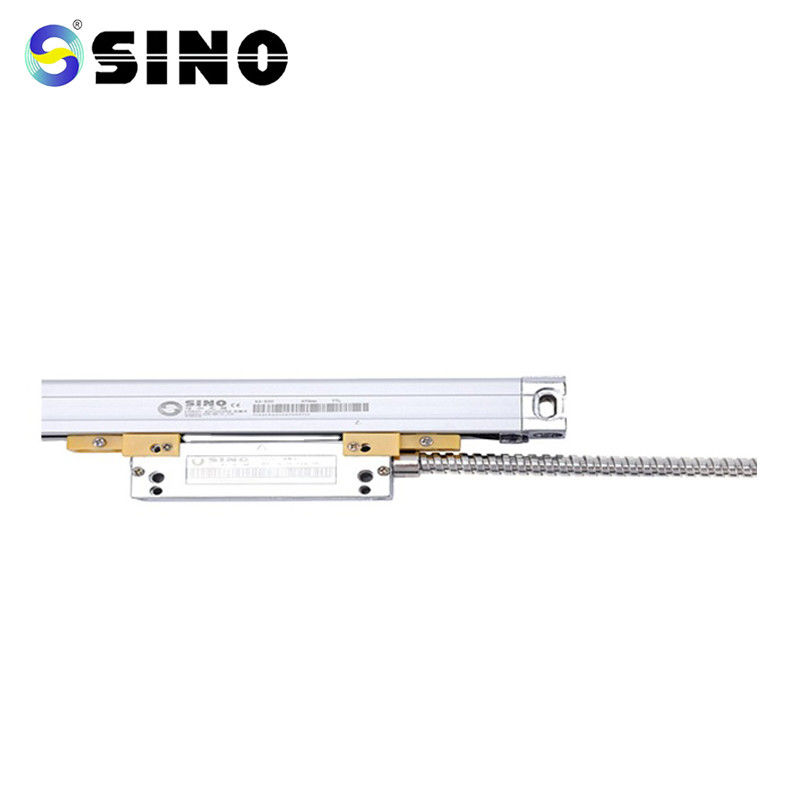

SINO KA500-220mm Glass Scale Linear Encoder Suitable For Milling Machine



KA-500 is a mini-encoder specially designed for the machine tool which has a low installation size and small operation space. It can meet the needs of those customers who have requirements for position. The length is 70~470mm.





Specifications
Scaling 0.02 mm (50lines /mm)
Precision: ±3µm,±5µm,±15µm/m (20±0.1℃)
Measuring range

70-470mm
Power supply +5V±5%,80mA
Working Temperature 0~45℃
Moving speed High-speed encoder 120 m/min (To be customized) Ordinary encoder  60m/min









Caution:



To avoid electric shock or fire, the equipment connected to encoder shall be kept from moisture or direct contact with cooling liquids. Encoder is a precision measuring instrument. To ensure its normal function, never expose it to external shock or vibration.





SINO KA500-220mm Glass Scale Linear Encoder Suitable For Milling Machine 0SINO KA500-220mm Glass Scale Linear Encoder Suitable For Milling Machine 1
