SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine

Brand Name:	SINO
Model Number:	SINO KA600-1500mm Linear Glass Scales
MOQ:	1 SET
Price:	Negotiable
Packaging Details:	Carton box
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GUANGZHOU

Certification:

CE, RoHS

Item:

SINO KA600-1500mm Linear Glass

Model:

KA-600 Series: 1000-3000mm

Usage:

Milling Boring Machine Lathe

Type:

Standard Optical Grating Linear Encoder

Resolution:

0.5/1/5um

Output Signal:

TTL Or RS-422

Color:

Silver

Style:

Economic

Seal Protection:

Operating Temperature:

0℃-45℃

Supply Ability:

3000 per month

Highlight:

SINO KA600-1500mm Linear Glass Scales

Milling Boring Machine Linear Glass Scales

Product Description

SINO KA600-1500mm Linear Glass Scales Machine For Milling Boring Machine

KA-600 series linear encoder is the most commonly used standard model. It is specifically designed for large machine tool, features in large size and good rigidy.

Specification

Model	KA-600 series
Travel length(mm)	1000-3000
Scaling distance	0.02mm(50 lines/mm)
Accuracy	±3µm,±5µm,±15µm/m (20±0.1℃)
Resolution(um)	0.5um/1um/5um
Reference Signal	Every 50mm per length specification
Seal protection	IP53
Moving speed	High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min
Output signal	Square wave TTL / RS422
Operating temperature	0℃-45℃
Storage temperature	-20℃--80℃
Humidity	100% not condensed
Voltage	5V/24V

Notes:

If finding any smoke or smell from the reading head, please immediately cut off the power supply. As the encoder connects with the numerical display to form a precision measuring instrument, continued use in event of above phenomena might cause fire or electric shock to the numerical display. Please contact Guangzhou SINO DRO Co., Ltd.or its dealer. Never try to repair by yourself.

Once the wire between numerical display and encoder is broken or damaged during use, it will cause error to the test data. The user shall take special care on this.

Never try to repair or refit the scale, as it might cause failure, trouble or damage.

Product images

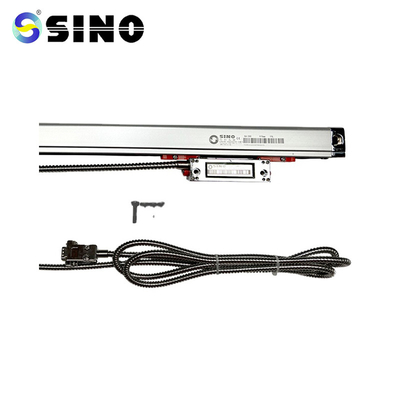

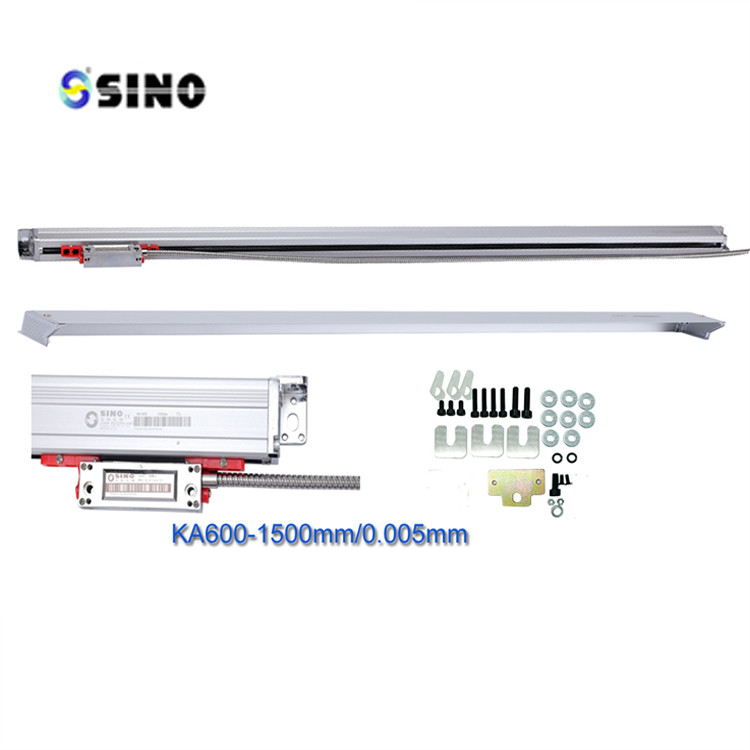

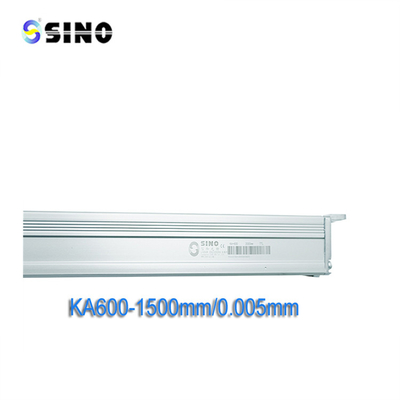

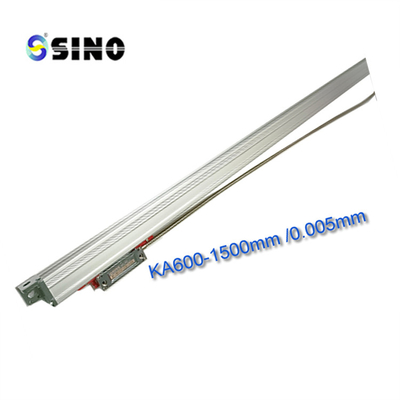

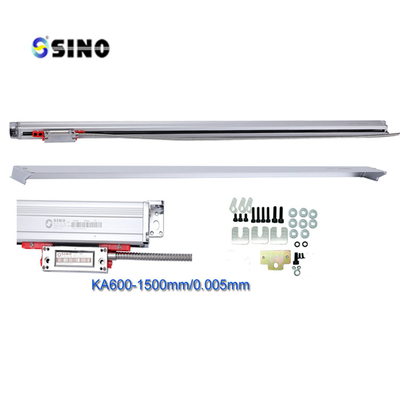

SINO KA600-1500mm Linear Glass Scales For Milling Boring Machine 0

All scales will be tested before delivery.

Each scale have its own test report:
