TTL Signal SINO Digital Readout System Escala Linear Ka300 570mm

SINO Digital Readout System Incremental Linear Encoder Drill Milling Machine

Detailed Product Description:

DRO SDS6-2V is a multifunctional 3-coordinate numerical display gauge. By different machine tool, this gauge can switch to corresponding function just by changing the parameters. It is provided with many graphic machining functions, including R-arc function, equal-division function, bevel machining function, and diagonal boring function for milling machine; EDM function for spark tester; tool library and taper measuring function for lathe

Machining Functions:

1. PCD circumferential division (Applicable to milling machine and spark tester)

2. Involute chamber machining function (Applicable to milling machine)

3. Bevel machining/Angular Surface Processing (Applicable to milling machine)

4. N3 function (Applicable to milling machine)

5. Diagonal boring (Applicable to milling machine)

6. R-arc function (Applicable to milling machine)

7. Tool Diameter Compensation (Applicable to milling machine)

8. Taper measuring function (Applicable to lathe)

9. 200-tool library (Applicable to lathe)

10. Anti-dithering function (Applicable to grinding machine)

(EDM)Matching Output Function (Applicable to EDM, option)

Specifications :

Supply Voltage range: AC 80V~260V; 50~60Hz,US Plug/UK/ available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Display resolution: 5µm/1µm/0.5µm/0.1µm

Min resolution of digital display angle : 0.0001/pulse

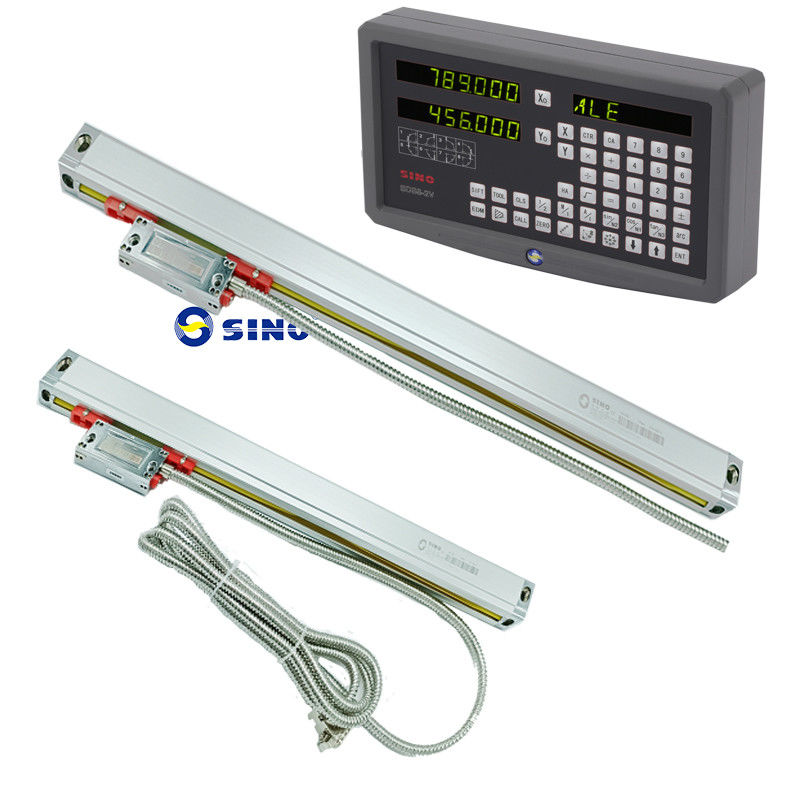

Product image /photos:

The rack in the picture is optioned, not standard product.
