SDS6-2V Digital Readout DRO Linear Scales High Accuracy Milling Lathe Machine

DRO Linear Scales SDS6-2V Digital Readout High Accuracy Milling Lathe Machine

Detailed Product Description:

We are the manufactory. The DRO SDS6-2V is a Multifunctional 2 axis digital readout for all kinds of machines.

We have an absolute outstanding and unique service. Usually there is always a time problem if there is any case of warranty and it take usually some weeks until your customer can get a replacement. Together with our partner in Europe, we are able to supply a necessary replacement or spare parts usually within 24 hours (for machines located in Europe). Your customers will be satisfied and you have no problems, no work, no headache and in a case of warranty significant reduced cost.

The DRO SDS6-2V is a Multifunctional 2 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.

Machining Functions:

1. PCD circumferential division (Applicable to milling machine and spark tester)

2. Involute chamber machining function (Applicable to milling machine)

3. Bevel machining/Angular Surface Processing (Applicable to milling machine)

4. N3 function (Applicable to milling machine)

5. Diagonal boring (Applicable to milling machine)

6. R-arc function (Applicable to milling machine)

7. Tool Diameter Compensation (Applicable to milling machine)

8. Taper measuring function (Applicable to lathe)

9. 200-tool library (Applicable to lathe)

10. Anti-dithering function (Applicable to grinding machine)

(EDM)Matching Output Function (Applicable to EDM, option)

Specifications :

Supply Voltage range: AC 80V~260V; 50~60Hz,US Plug/UK/ available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Display resolution: 5µm/1µm/0.5µm/0.1µm

Min resolution of digital display angle : 0.0001/pulse

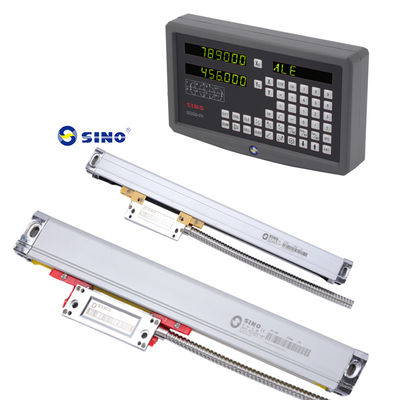

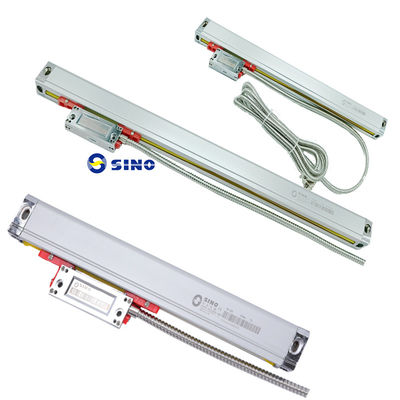

Product image /photos:

The rack in the picture is optioned, not standard product.
