Product Details:
|
Name: | Glass Linear Encoder Codificador Lineal | Encoder: | Linear Position Sensors |
---|---|---|---|
Usage: | Drills And Milling Machines | Display: | LED / Green Color 2 Axis |
Signal: | TTL Signal | Voltage: | AC100-240V / 50-60Hz |
System: | SINO DRO SYSTEM | ||
Highlight: | KA300 Glass Linear Encoder,Codificador Glass Linear Encoder |
KA300 Glass Linear Encoder Codificador Lineal Linear Position Sensors
Detailed Product Description:
KA-300 is the most commonly used standard ruler (TTL electric level). For the KA Series of the linear encoder from our company, every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being deliveried from the factory.
We are the manufactory. KA-300 linear encoder available in 70-1020mm. Cross Section is 25X34mm. Resolution: 0.5/1/5 micron.
We have an absolutely outstanding and unique service. Usually, there is always a time problem if there is any case of warranty and it take usually some weeks until your customer can get a replacement. Together with our partner in Europe, we are able to supply a necessary replacement or spare parts usually within 24 hours (for machines located in Europe). Your customers will be satisfied and you have no problems, no work, no headache, and in the case of a warranty significantly reduced cost.
Machining Functions:
1. Cross Section (mm): 25 X 34
2. Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
3. Reference Point: one unit per 50mm
4. Max of Measuring speed: 60m/min
5. Protection level: IP55
6. Resolution(micron): 0.5/ 1/ 5
7.Output signal: TTL / EIA-422-A

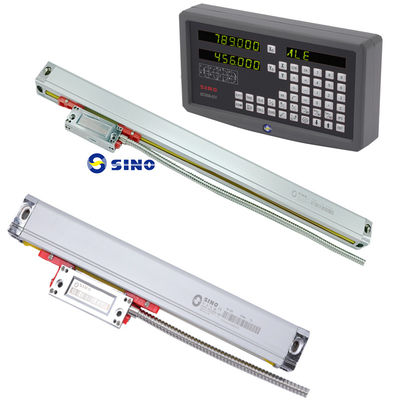

Product image /photos:
The rack in the picture is optioned, not standard product.
