Product Details:
|
| Item: | SINO KA-200 Digital Readout System | Model: | KA-200mm |
|---|---|---|---|
| Usage: | Lathe Boring Machine | Resolution: | 0.5/1/5um |
| Output: | TTL/ RS-422 | Protection Class: | IP53 |
| Operating Temperature: | 0℃-45℃ | Color: | Silver |
| High Light: | Digital Readout Glass Scale Linear Encoder,TTL Glass Scale Linear Encoder |
||

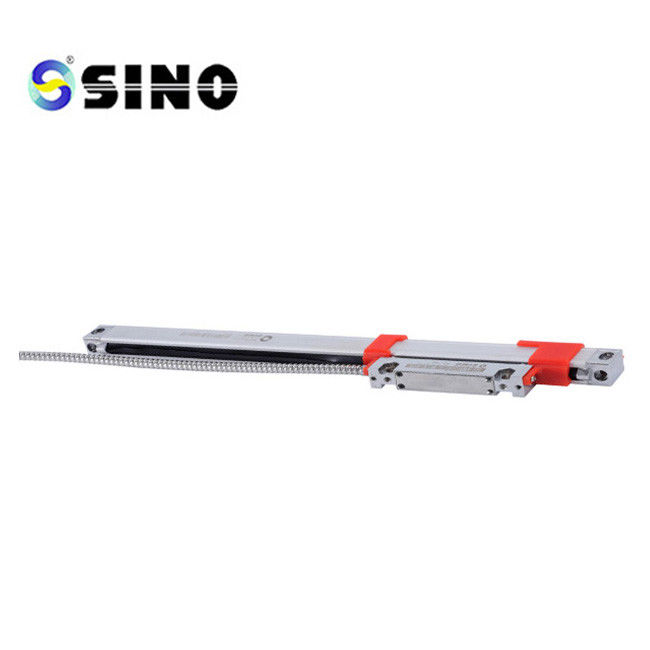

SINO KA-200 Digital Readout System Glass Scale Linear Encoder For Lathe Boring Machine TTL
KA-200, a mini-encoder smaller than KA-500, is designed based on kA-500 by optimizing the internal and external structure.KA-200 linear glass scale is a measuring machine suitable for Lathe, boring, milling machine.
Specification
| Model | KA-200 series |
| Travel length(mm) | 30-360 |
| Scaling distance | 0.02mm(50 lines/mm) |
| Accuracy | ±3µm,±5µm,±15µm/m (20±0.1℃) |
| Resolution(um) | 0.5um/1um/5um |
| Power supply | +5V±5%,80mA |
| Seal protection | IP53 |
| Moving speed |
High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min |
| Output signal | Square wave TTL / RS422 |
| Operating temperature | 0℃-45℃ |
| Storage temperature | -20℃--80℃ |
| Humidity | 100% not condensed |
| Voltage | 5V/24V |
Product images
All scales will be tested before delivery.
Each scale have its own test report:
