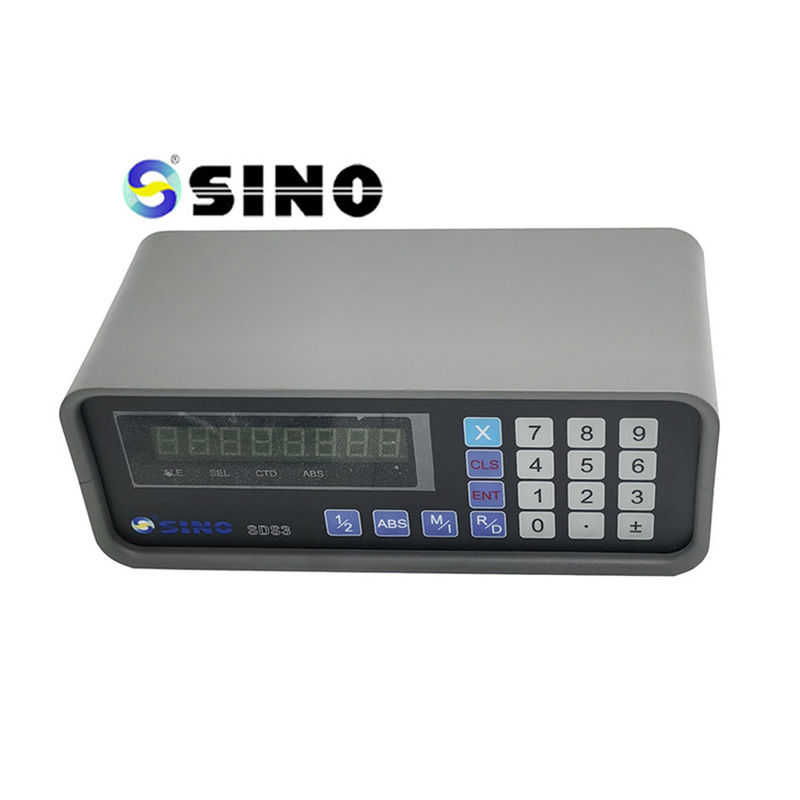

TTL Square Wave Single Axis Digital Readout Scale Opitical For Milling

Name: TTL Square Wave Single Axis Digital Readout Scale Opitical For Milling
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: SINO SDS3-1 Digital Readout System
Availability: InStock

Brand Name:	SINO
Model Number:	SINO SDS3-1 Digital Readout System
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE, RoHS

Item Name:

SINO SDS3-1 Digital Readout System

Usage:

For Milling Lathe Boring

DRO System:

SDS3-1 Single Axis DRO

Power Consumption:

25VA

Resolution:

0.5/1/5um

Digital Filter:

Yes

Relative Humidity:

<90%(20±5℃)

Allowable Input Signal:

TTL Square Wave

Supply Ability:

3000 sets per month

Highlight:

Single Axis Digital Readout Scale

Square Wave Single Axis Digital Readout

Product Description

SINO SDS3-1 Digital Readout System Hot Selling Single Axis Digital Readout Scale Opitical For Milling Lathe Boring

Detailed Product Description:

The SDS3-1 system is the best product for improving the normal machine tool. Only need easy install and update, it can improve you normal machine tool.SDS3 is small size DRO that has strong operation functions special for single axis measurement and position.

The system use in all kinds of machine tool equipment.Scriber measuring coordinate machine, meter. It can display dynamic displacement number and precise measuring controling, and readout intuitionistic, veracious, dependable, quickly. Besides, this system is function complete, installing easy and easy to control. You will not spend more time on learn how to control it masterly. If install it on the normal machine tool, because it have dependable, precise coordinate orientation function and don’t effect by the error of the filar pole and the clearance of backfill, it can improve the processing precision and efficiency, so it will improve you processing efficiency highly.

Reference to the experience of light digital system controling in Sino, we optimize uses and machine controlling interface. Users can use the system masterly in a short time and process handy. The SDS3-1 system is the best product for improving the normal machine tool. Only need easy install and update, it can improve you normal machine tool.

Specification:

Item name	SINO SDS3-1 Digital Readout System
Digital Readout (DRO)	SDS3-1
Number of coordinates	1 coordinates
Allowable input signal frequency	≤5 MHz.
Weight	≈3.2 kg
Relative humidity	<90%(20±5℃)
Frequency multiplication	4X
Power consumption	25VA

Functions for grinding machine:

Mm/inch measurement transformation
Absolute/Relative transformation
Linearety Error Compensation
Midsplit Function
zero adjustment
resolution setting
grinding maching debouncing function
radius/diameter conversation
radius/diameter conservation
RS-232-c interface
power down memory
congruous output
I/O samping additional

Detail Information:

TTL Square Wave Single Axis Digital Readout Scale Opitical For Milling 0

TTL Square Wave Single Axis Digital Readout Scale Opitical For Milling 4

All linear scales were tested before delivery. Here is a sample of a scale's test report.

TTL Square Wave Single Axis Digital Readout Scale Opitical For Milling 5
