|Item Name:||SDS200 Four Axis DRO Kit||Usage:||For Milling Machine EDM|
|Screen:||LCD||Signal:||Square Wave TTL Or RS422|
|Storage Temperature:||-30℃~70℃||Others:||Cable / Manual|
DRO Digital Readout Kit,
Four Axes Digital Readout Kit,
EDM Digital Readout Kit
Four Axes ISO9001 DRO Digital Readout Kit System For Milling Machine EDM

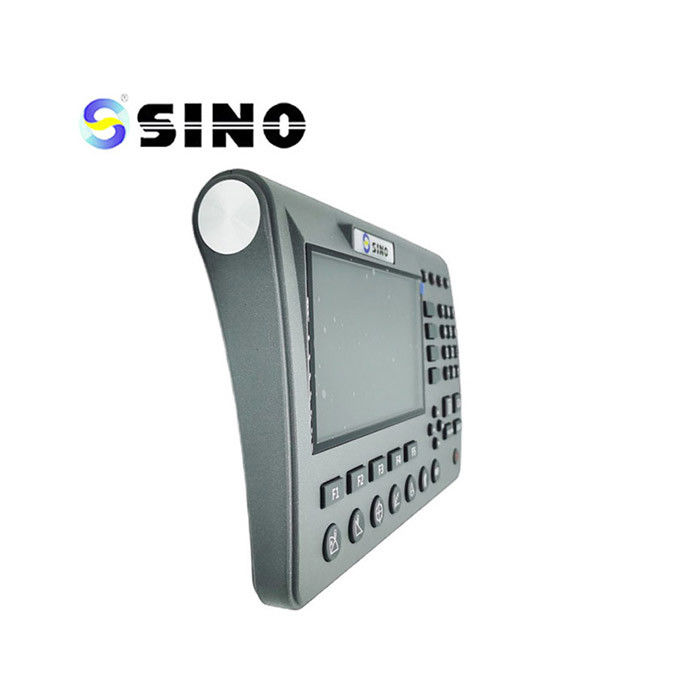

The SDS 200S is 4 axes measuring machine suitable for Milling, Lathe, and EDM machines. It is a precise measuring product, with the main purpose of providing detecting and locating functions for test instruction or during the processing of various manual machine tools of different types.
Note: When using the product, the user needs to handle it with care, otherwise, its precision will be affected. Besides, read the following safety knowledge and notes to ensure that the new display device is used safely.
MM/INCH;ABSOLUTE/INCREMENTAL; MIDSPLIT FUNCTION; SIMPLE "R" FUNCTION; SMOOTH "R" FUNCTION; PCD CIRCLE EQUALLY DIVIDING HOLES; SAVE 200WORKPIECE ZERO POINTS; MATHEMATICS CALCULATION; BEVEL PROCESS;200TOOL STOREROOM; LINEAR ERROR COMPENSATION; NON-LINEAR ERROR COMPENSATION; POWER INTERRUPTION MEMORY; CLEANING KEY;
|Item name||SDS200 Four Axis DRO Kit|
|Digital Readout (DRO)||SDS200s|
|Power Voltage selection||AC 80V~260V 50Hz~60Hz|
|Allowable input signal||TTL square wave|
|Length resolution||5µm, 1µm|
|Others||Cable / Manual|
To prevent electric shock for fire, this machine must not be affected by dampness or subjected to direct spurting of the cooling liquid.
To avoid electric shock, do not open the enclosure by yourself. The machine has no components that can be repaired by users. For service, Please contact professional and technical personnel for inspection and maintenance.
If the display is found to give out smoke or undesirable odor, immediately unplug the power cord. Continuing to use this product at this time will lead to fire or electric shock. Please contact its agent. Do not try to repair the display by yourself.
The display is connected with an optical-electronic rule to constitute a precise test device. Once the wiring between the electronic rule and display is broken or has its surface damaged, the test data would be wrong. Users must be especially careful.
Do not try to repair or remodel the display unit, which would otherwise lead to failure, malfunction, or injury. If an abnormality occurs, contact its agent.
If the optical-electronic ruler used by the display unit is indeed damaged, do not use an electronic rule of another brand for connection, because the products from different companies have different features, indexes, and wirings. Without the guidance of professionals, products from different companies are not allowed to be connected, which otherwise would lead to display failure.
All linear scales were tested before delivery. Here is a sample of a scale's test report.
