|Item Name:||IP53 KA300 Encoder||Application:||For EDM Milling Machine|
|Sealing Protection:||IP53||Output Signal:||RS-442/TTL|

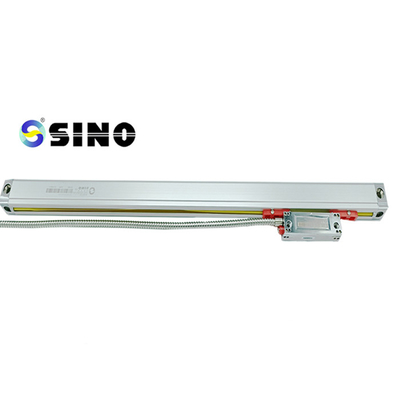

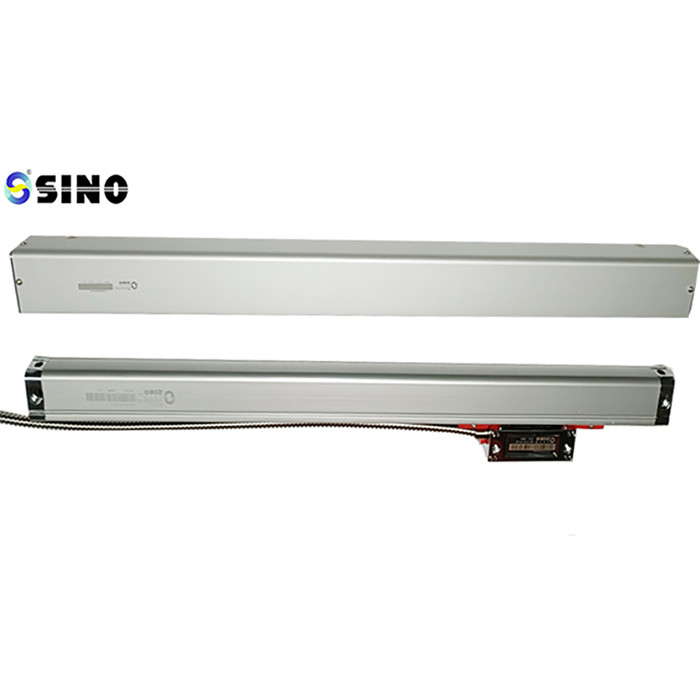

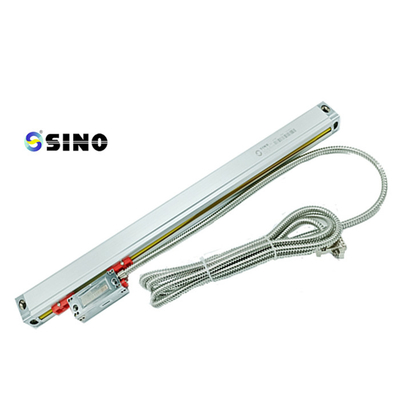

KA300 Glass Linear Encoder,
1020mm Length Glass Linear Encoder,

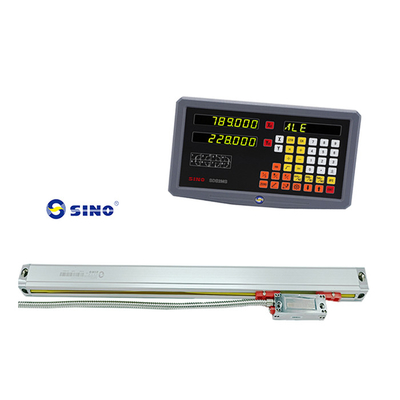

EDM Milling Machine Glass Linear Encoder
Thank you very much for using this series of encoders. It is the most famous China International brand. Once you choose it, it will be your best bet. we are a professional A factory specializing in the production of encoder digital displays. by continuous. Through years of research and production modifications and improvements, we have developed today's KA series linear encoders. KA series encoders under this manual
Includes KA-300, KA-600, KA-500, and KA-200 to meet the following requirements for different applications.
The KA-300 is a widely used encoder. Optimized structure, beautiful appearance, and high rigidity can meet the needs of ordinary user
machine users. length is 70-1020mm.
To avoid electric shock or fire, the equipment connected to the encoder should be properly stored
Avoid moisture or direct contact with coolant. An encoder is a precision measuring instrument. To ensure proper function, do not
expose it to external shock or vibration.
To prevent encoder misalignment and avoid electric shock, do not open any seals
on the encoder. There are no user-serviceable parts. Please ask for authorization
Technicians perform repairs
1. Technical Parameter
1.1 Scaling distance: 0.02 mm (50lines /mm)
1.2 Resolution: 5µm,1µm,0.5µm 1.3 Precision: ±3µm,±5µm,±15µm/m (20±0.1℃)
1.4 Measuring range: 30~3000mm
1.5 Moving speed: High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min
1.6 Power supply: +5V±5%,80mA
1.7 Cable length: Standard 3m (Special length available according to the user’s needs)
1.8 Working Temperature: 0~45
KA300 Linear Ruler x 1pc
0.5/1/5 μm Resolution Available.
Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-170mm)
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
