Product Details:
|
Item Name: | TTL SINO KA500-520mm Digital Readout System | Application: | For Milling Lathe Test Instruments |
---|---|---|---|
Sealing Protection: | IP53 | Output Signal: | RS-442/TTL |
Length: | 30-470mm | Resolution: | 0.5um/1um/5um |
Cross Section: | 18*20 | ||
High Light: | Digital Readout System Glass Linear Encoder,Milling Lathe Test Glass Linear Encoder |

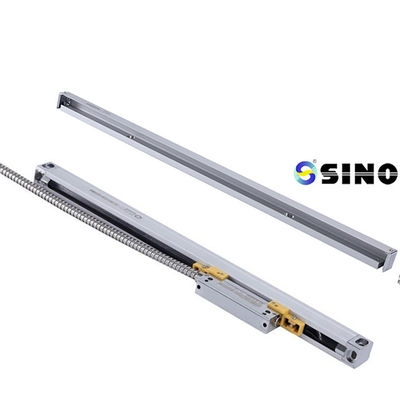

TTL SINO KA500-520mm Digital Readout System Glass Scale Linear Encoder Digital for Milling Lathe Test instruments
Thank you very much for using this series of encoders. It is the most famous international brand in China. Once you choose it, it will be your best bet. We are a professional manufacturer specializing in the production of digital display encoders. After years of research and continuous modification and improvement in production, we have developed today's KA series linear encoders. The KA series encoders in this manual include the KA-300, KA-600, KA-500, and KA-200 to meet the following different application requirements.
The KA-500 is a small encoder specially designed for machine tools, with small installation dimensions and small operating space. Can meet customer needs with job requirements. The length is 70~470mm.
warn:
To avoid electric shock or fire, the equipment connected to the encoder should be properly stored.
Avoid moisture or direct contact with coolant. The encoder is a kind of precision measuring instrument. To ensure normal function, please do not
Expose it to external shock or vibration.
To prevent the encoder from being misaligned and avoid electric shock, do not open any seals.
On the encoder. There are no user-serviceable parts. Please request authorization.
Technicians perform repairs
1. Technical Parameter
1.1 Scaling distance: 0.02 mm (50lines /mm)
1.2 Resolution: 5µm,1µm,0.5µm 1.3 Precision: ±3µm,±5µm,±15µm/m (20±0.1℃)
1.4 Measuring range: 30~3000mm
1.5 Moving speed: High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min
1.6 Power supply: +5V±5%,80mA
1.7 Cable length: Standard 3m (Special length available according to the user’s needs)
1.8 Working Temperature: 0~45
Package included:
KA500 Linear Ruler x 1pc
0.5/1/5 μm Resolution Available.
Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-3000mm)
|
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
