|Item Name:||CE SINO SDS200 Digital Readout Kits||Usage:||For Milling Lathe|
|Power Voltage Selection:||AC 100V~240V 50 Hz~60 Hz||Signal:||TTL Square Wave|
|Number Of Coordinates:||4 Coordinates||Working Temperature:||0~45℃|
|Storage Temperature:||-30~70℃||Power Consumption:||25VA|
|Operation KeyboarOperation Keyboard:||Sealed Diaphragm Touch Keys|
SDS200 Digital Readout Kits,
Lathe Digital Readout Kits,
Milling Digital Readout Kits

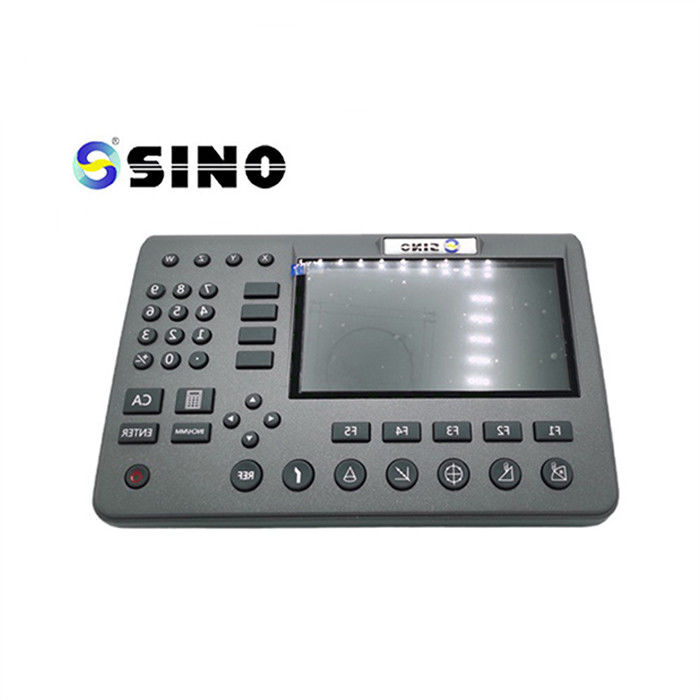

CE SINO SDS200 Digital Readout Kits Test Intrusment Machine For Milling And Lathe TTL for CNC machine
SDS200 is the digital readout used for 4-axis milling machines and grinding machines.
● To prevent electric shock or fire, avoid getting wet or spraying coolant directly.
●There are no user-serviceable parts in the case, please do not open it to avoid electric shock. Please contact professional technicians for repair.
●If you smell a digital display or smoke please unplug it immediately. Fire or electric shock may occur. In this case, yes. . Please contact Guangzhou Digital or your dealer dealer
● The digital readout is a precise gauge used in conjunction with the optoelectronic ruler. If the external connection between the electronic ruler and the digital meter is disconnected or damaged, the reading may be incorrect. Therefore, users should be careful.
● Do not attempt to repair or modify the DRO as this may result in failure, malfunction, or injury. Any abnormal situation, please contact Guangzhou Sino Digital Co., Ltd. or your dealer.
●If the photoelectric ruler used on the digital display is damaged, do not use the ruler of other brands. Due to the different performance, specifications, and connection methods of products of different manufacturers, the connection can not be carried out without the supervision of professional technicians, otherwise, problems with the digital display may occur.
1. The display is not show:1: The power is not switched on. 2: The fuse is damaged. 3: 220V power cable is poorly connected. 4: Whether appropriate power voltage is used. Troubleshooting
1: Switch on the power.0} 2: Replace the fuse with a new one of the same specification. 3: The power plug shall be in proper condition. 4: Whether the input power is within 100V~240V.
2. The case of the display is electrified:1: The machine tool and display are poorly grounded. 2: There is electric leakage of the 220V power
Troubleshooting:1: The machine tool case and the display case shall be properly grounded. 2: Check the 220V power.
3. The displayed value of a certain axis is two times the normal value. 1: The resolution ratio of the grating ruler is not correctly set. 2: The diameter display mode is set for a certain axis.Troubleshooting:1.Set the correct resolution. 2: Set the radius display mode.
|Item name||SDS200 Digital Readout Kits|
|Digital Readout (DRO)||SDS 6-2V|
|Power Voltage selection||AC 100V~240V 50 Hz~60 Hz|
|Allowable input signal||TTL square wave|
|Length resolution||5um, 1um, 0.5um|
|Others||Cable / Manual|
To prevent electric shock from fire, the machine shall not spray moisture or coolant directly.
All linear scales were tested before delivery. Here is a sample of a scale's test report.
Thank you for purchasing and using our products! To satisfy you with our after-sales service, please read the following instructions:
●The product implements "three guarantees", and the warranty period (from the date of purchase) is 15 days for replacement and free maintenance.
The accessories must be complete when replacing: ●The following services are charged: 1. Warranty for more than one year; 2. Abnormal damage caused by not meeting the requirements of use, maintenance, and storage; 3. Damage caused by unauthorized practitioners; 4. . No valid invoice (unless the product can be proved within the warranty period); 5. Damage caused by force majeure.
