Optical Angle Encoder

28 Bits Optical Angle Encoder AD-60MA-C28 Digital Readout System DRO Measuring Machine

All Category

CNC Machine Accessories

Ms. Berlina

sino_trade@163.com

18620615002

Contact Now

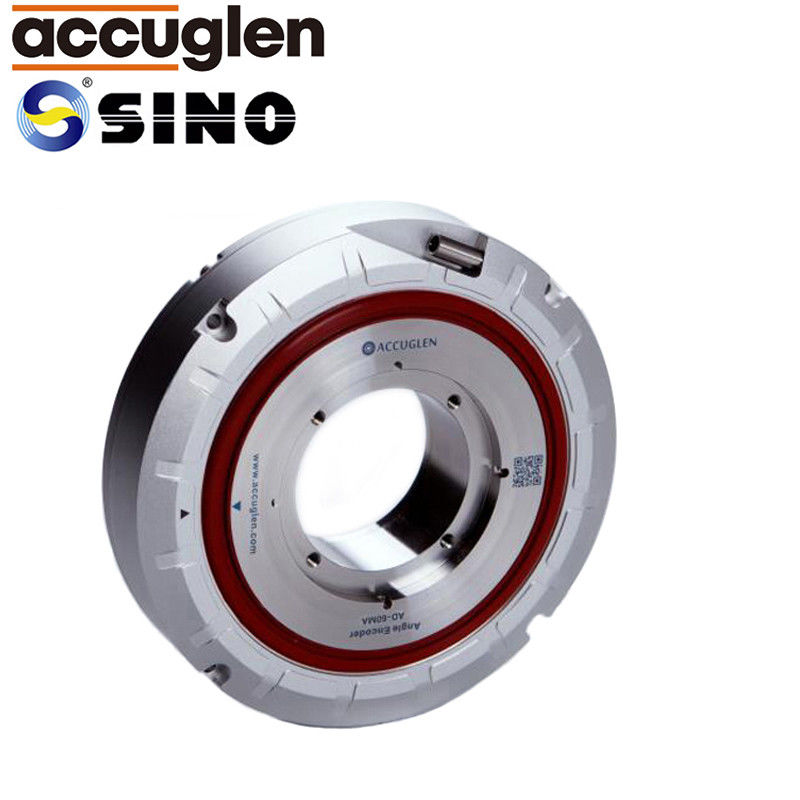

28 Bits Optical Angle Encoder AD-60MA-C28 Digital Readout System DRO Measuring Machine

Brand Name:	SINO
Model Number:	AD-60MA-C28
MOQ:	1 SET
Price:	Negotiable
Packaging Details:	Cartons
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GUANGZHOU

Certification:

CE,RoHS,ISO9001

Item:

Sealed Absolute Angle Encoders

Model:

AD-60MA-C28

Hollow Through Shaft Diameter (mm):

Position Values/revolution:

268435456（28 Bits）

Allow Rotating Speed (rpm):

Reference Point:

Accuracy:

±8"～±10"

Supply Ability:

3000 sets per mouth

Highlight:

28 Bits Optical Angle Encoder

Optical Angle Encoder AD-60MA-C28

Digital Readout Optical Angle Encoder

Product Description

SINO Optical Angle Encoder AD-60MA-C28 Digital Readout System DRO Measuring Machine Suitable For Milling Lathe

The term angle encoder is typically used to describe encoders that have accuracy from ± 5” to± 10” and a line count above 5000. Angle encoders of choice when angle measurement in the accuracy of a few seconds is required.

Basic Sealed Angle Encoders architecture has three major components: integral bearing, hollow shaft, and Integrated stator coupling. It encases the most delicate components of the encoder, protecting them from whatever contamination may be present (IP54 protection).

AD series high-end angle encoders with integral bearing are characterized in particular by very high system accuracy in the global market. The integral bearing in the encoders eliminates any effect on measuring accuracy from the bearing of the machine components. The Integrated stator coupling expands the applicable range of axial installation to 0.5mm, which reduces the difficulty of processing and assembling related accessories.

specifications

ITEM	AD-60MA-C28
Shaft size D1	60g7(-0.010/-0.040)
D2	80
D3	165
D4	158
D5	76
D6	66
D7	M60*1
D8	148
H1	39
H2	3
H3	32.5
H4	6.5
M	4M530


28 Bits Optical Angle Encoder AD-60MA-C28 Digital Readout System DRO Measuring Machine 0

28 Bits Optical Angle Encoder AD-60MA-C28 Digital Readout System DRO Measuring Machine 2

FAQ

Q1: When will it be delivered?
A: 5-8days

Q2: May I have a look at the sample?
A: Certainly, we can send you a sample picture of the product so that you can check the quality.

Q3: How long does the product guarantee quality?
A: We offer one year warranty for our product, and our product has strict quality testing.
