|Item Name:||Small Linear Scale KA200||Application:||Suitable For Mill Lathe|
|Power Supply:||+5V±5%、80mA||Output Signal:||RS-442/TTL|
|Working Temperature:||0~45℃||Scaling Distance:||0.02mm(50lines/mm)|
KA200 Glass Linear Encoder,
Digital Readout Glass Linear Encoder

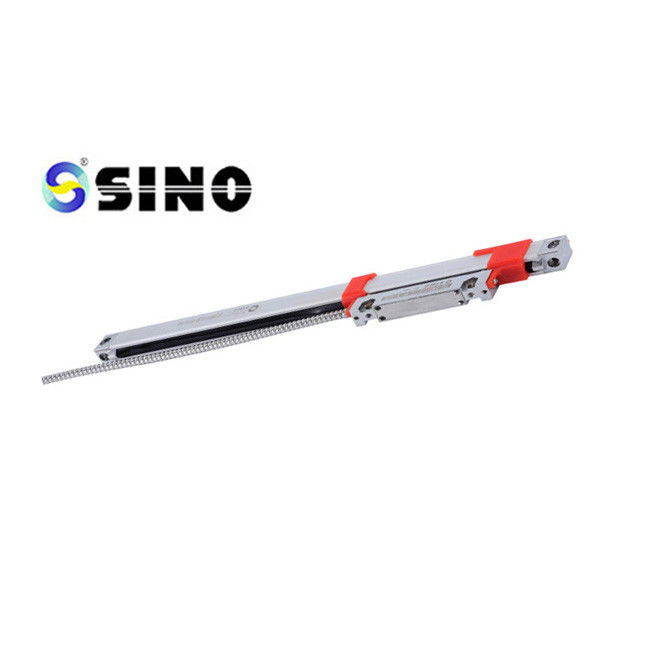

SINO Machine Digital Readout Small Linear Scale KA200 Glass Linear Encoder Suitable For Mill Lathe
Technicians perform repairs
1. Technical Parameter
1.1 Scaling distance: 0.02 mm (50lines /mm)
1.2 Resolution: 5µm,1µm,0.5µm 1.3 Precision: ±3µm,±5µm,±15µm/m (20±0.1℃)
1.4 Measuring range: 30~3000mm
1.5 Moving speed: High-speed encoder 120 m/min (To be customized) Ordinary encoder 60m/min
1.6 Power supply: +5V±5%,80mA
1.7 Cable length: Standard 3m (Special length available according to the user’s needs)
1.8 Working Temperature: 0~45
KA200 Linear Ruler x 1pc
0.5/1/5 μm Resolution Available.
Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-170mm)
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
