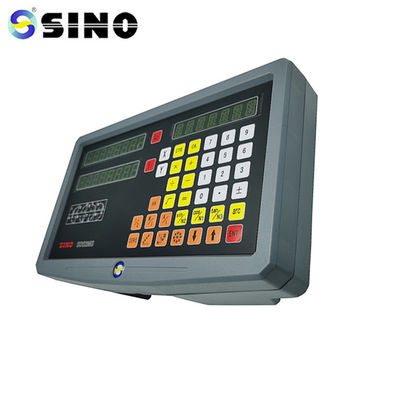

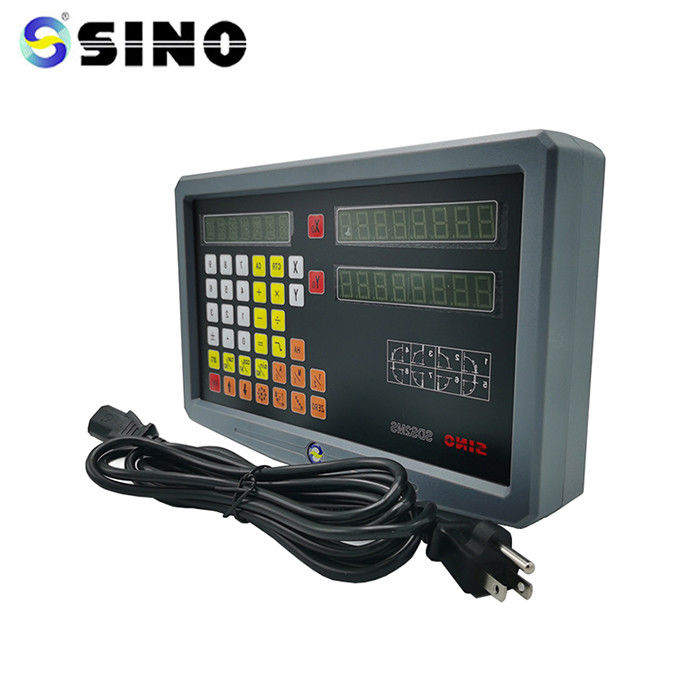

2 Axis Multilingual Digital Readout Display SDS2MS Plastic Dro System For EDM Machine

SINO 2 Axis Multilingual Digital Readout Display SDS2MS Plastic Dro System For Mill Lathe EDM Machine IP64

specifications:

1. The digital display box must be handled carefully.

2. The box must be grounded properly.

3. Power voltage selection: AC 100V~240V 50 Hz~60 Hz

4. Power consumption: 25VA

5. Working temperature: 0℃~45℃

6. Storage temperature: -30℃~70℃

7. Relative humidity: <90%(20±5℃)

8. Weight: ≈840 g

9. There must no corrosive gases obviously be around the box.

10. Number of coordinates: 2 coordinates.

11. Display: 7 digits with symbol display, the message window displays by means of the 8-star character display device.

12. Frequency multiplication: 4X

13. Allowable input signal: TTL square wave.

14. Allowable input signal frequency: ≤5M Hz

15. Length resolution: 5µm, 1µm.

16. Operation keyboard: Sealed diaphragm touch keys

Package list:

1. a piece of SDS2MS series digital readout

2. a piece of power wire

3. a copy of operating instruction

4. a copy of the verified certificate

5. a piece of the dustproof cover

6. a piece of bracket B

Detail Information:

1. who are we?

We are based in Guangdong, China, start from 2021,sell to Eastern Asia(15.00%),North America(10.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Western Europe(10.00%),Northern Europe(10.00%),Mid East(9.00%),Southern Europe(8.00%),South America(5.00%),Central America(5.00%),South Asia(5.00%),Africa(1.00%),Oceania(1.00%),Domestic Market(1.00%). There are a total of about null people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment ;

All linear scales were tested before delivery. Here is a sample of a scale test report.
