KA500 Glass Linear Scale DRO Digital Readout System Measuring Machine For Mill CNC RS-442
  • name
  • name

KA500 Glass Linear Scale DRO Digital Readout System Measuring Machine For Mill CNC RS-442

Brand Name: SINO
Model Number: KA500
MOQ: 1 set
Price: Negotiable
Packaging Details: Cartons
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
Guangzhou, CHINA
Certification:
CE,RoHS
Item Name:
SINO Glass Linear Scale KA500
Application:
Suitable For Mill CNC RS-442
Sealing Protection:
IP53
Output Signal:
RS-442/TTL
Length:
70-770mm
Resolution:
0.5um/1um/5um
Cross Section:
18*20
Working Temperature:
0~45℃
Precision:
±3µm、±5µm、±15µm/m
Supply Ability:
3000 sets per month
Highlight:

Digital Readout Glass Linear Scale

,

Test Instrument Glass Linear Scale

Product Description

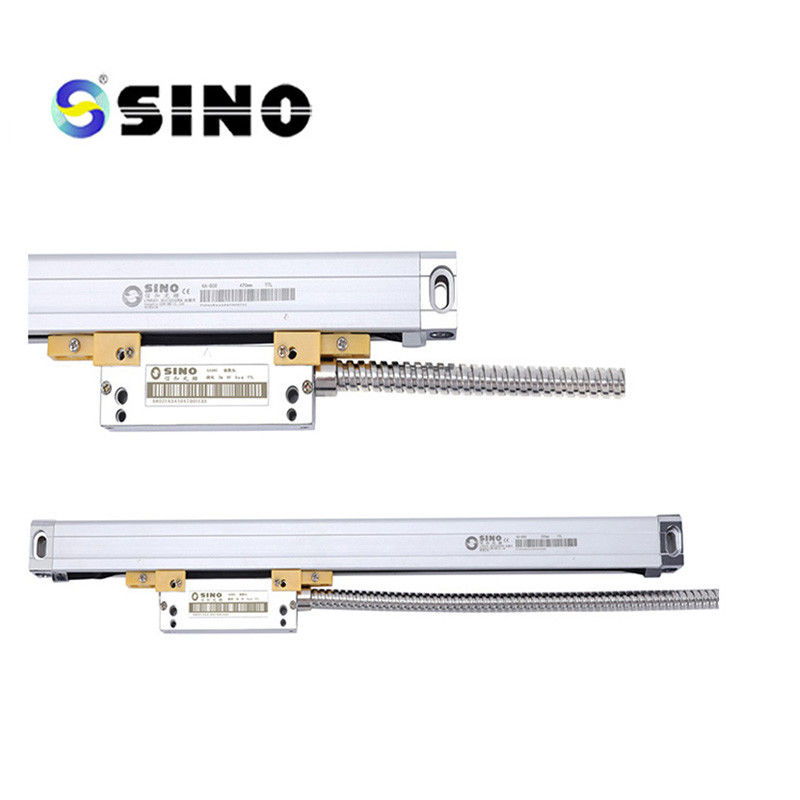

SINO Glass Linear Scale KA500 DRO Digital Readout System Test Instrument Measuring Machine Suitable For Mill CNC RS-442

The KA-500 is a small encoder specially designed for machine tools, with small installation dimensions and small operating space. Can meet customer needs with job requirements. The length is 70~470mm.


Package included:
KA500 Linear Ruler x 1pc
0.5/1/5 μm Resolution Available.
Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-3000mm)

Model
Model L0 L1 L2 Model L0 L1 L2
KA500-70 70 172 182 KA500-320 320 422 432
KA500-120 120 222 232 KA500-370 370 472 482
KA500-170 170 272 282 KA500-420 420 522 532
KA500-220 220 322 332 KA500-470 470 572 582
KA500-270 270 372 382 　 　 　


L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension

Detail Information:
 KA500 Glass Linear Scale DRO Digital Readout System Measuring Machine For Mill CNC RS-442 0KA500 Glass Linear Scale DRO Digital Readout System Measuring Machine For Mill CNC RS-442 1


All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

KA500 Glass Linear Scale DRO Digital Readout System Measuring Machine For Mill CNC RS-442 2
