Product Details:
|
| Item: | Digital Readout System SDS 2MS | Protection: | IP64 |
|---|---|---|---|
| Usage: | Suitable For Mill Lathe Machine | Power Voltage Selectionultiplication: | AC 100V~240V 50 Hz~60 Hz |
| Signal: | TTL Square Wave | Working Temperature: | 0-45℃ |
| Storage Temperature: | -20--70℃ | Resolution: | 5um/1um |
| Allowable Input Signal: | TTL Square Wave | ||
| High Light: | SDS2MS SINO Digital Readout System,KA300 SINO Digital Readout System |
||

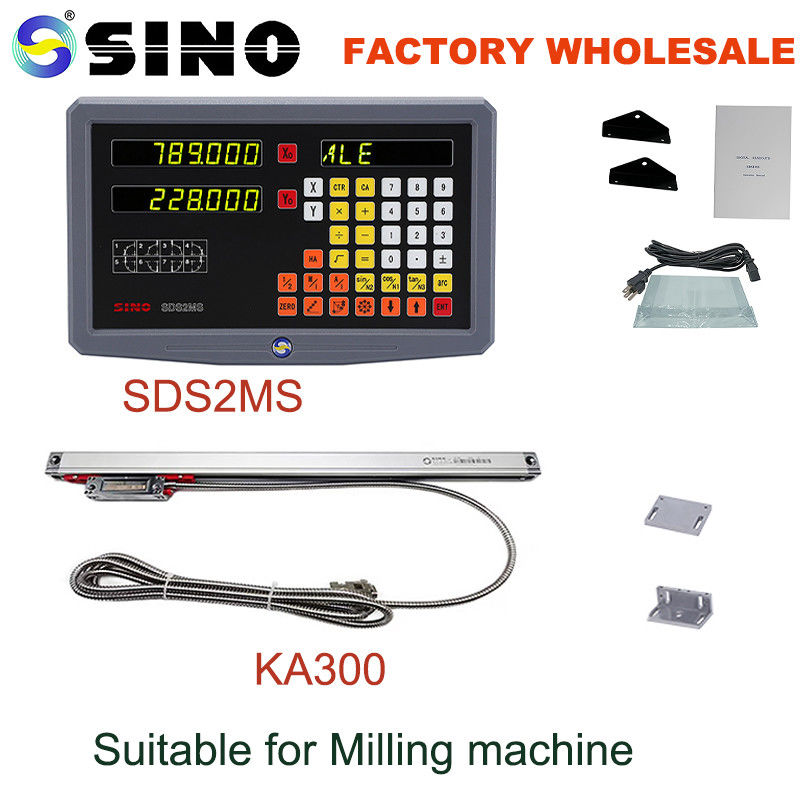

SINO Digital Readout System SDS2MS DRO KA300 Glass Linear Scale Suitable For Milling Lathe TTL Square Wave
Description of Digital Readout System
SDS2MS is 2 axes digital readout system, which use for testing machines. Our company has passed the authorization and audit of the ISO 9001 quality system, ISO 14001 environmental system, and OHSAS 18001 occupational health and safety system.
It is a general encoder optimization, aesthetics and intimacy are indispensable for the average user
70 to 1020 millimeters
KA-300 is a type of encoder with wide applications. It features an optimal structure, good appearance, and high rigidity, able to meet the needs of the majority of general machine users. The length is 70~1020mm
Specifications:
1. The digital display box must be handled carefully.
2. The box must be grounded properly.
3. Power voltage selection: AC 100V~240V 50 Hz~60 Hz
4. Power consumption: 25VA
5. Working temperature: 0℃~45℃
6. Storage temperature: -30℃~70℃
7. Relative humidity: <90%(20±5℃)
8. Weight: ≈840 g
9. There must no corrosive gases be around the box.
10. Number of coordinates: 2 coordinates.
11. Display: 7 digits with symbol display, the message window displays using the 8-star character display device.
12. Frequency multiplication: 4X
13. Allowable input signal: TTL square wave.
14. Allowable input signal frequency: ≤5M Hz
15. Length resolution: 5µm, 1µm.
16. Operation keyboard: Sealed diaphragm touch keys
Package list:
SDS2MS, cable,KA300 70-220mm
Product Information
| Item name | SINO DRO System SDS2-3MS |
| Digital Readout (DRO) | SDS 2-3MS |
| Power Voltage selection | AC 100V~240V 50 Hz~60 Hz |
| Power consumption | 25VA |
| Working temperature | 0℃~45℃ |
| Allowable input signal | TTL square wave |
| Length resolution | 5um, 1um, 0.5um |
| Storage temperature |
-30℃~70℃ |
| Others | Cable / Manual |
Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-520mm)
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
