Product Details:
|
| Item: | SINO Grating Ruler KA300 270mm | Protection: | IP53 |
|---|---|---|---|
| Output Signal: | RS-442/TTL | Length: | 270-470 |
| Resolution: | 0.5um/1um/5um | Cross Section: | 25*34 |
| Voltage: | AC 100V~240V 50 Hz~60 Hz | Allowable Input Signal: | TTL Square Wave |
| Warranty: | 1 Year | ||
| High Light: | 270mm Glass Linear Scale,DRO SINO Glass Linear Scale |
||
KA-300 is a type of encoder with wide applications. It features an optimal structure, good appearance, and high rigidity,
able to meet the needs of the majority of general machine users. The length is 270-470mm.
Specifications:
1. The digital display box must be handled carefully.
2. The box must be grounded properly.
3. Power voltage selection: AC 100V~240V 50 Hz~60 Hz
4. Power consumption: 25VA
5. Working temperature: 0℃~45℃
6. Storage temperature: -30℃~70℃
7. Relative humidity: <90%(20±5℃)
8. Weight: ≈840 g
9. There must no corrosive gases be around the box.
10. Number of coordinates: 2 coordinates.
11. Display: 7 digits with symbol display, the message window displays using the 8-star character display device.
12. Frequency multiplication: 4X
13. Allowable input signal: TTL square wave.
14. Allowable input signal frequency: ≤5M Hz
15. Length resolution: 5µm, 1µm.
16. Operation keyboard: Sealed diaphragm touch keys
Packing detail:

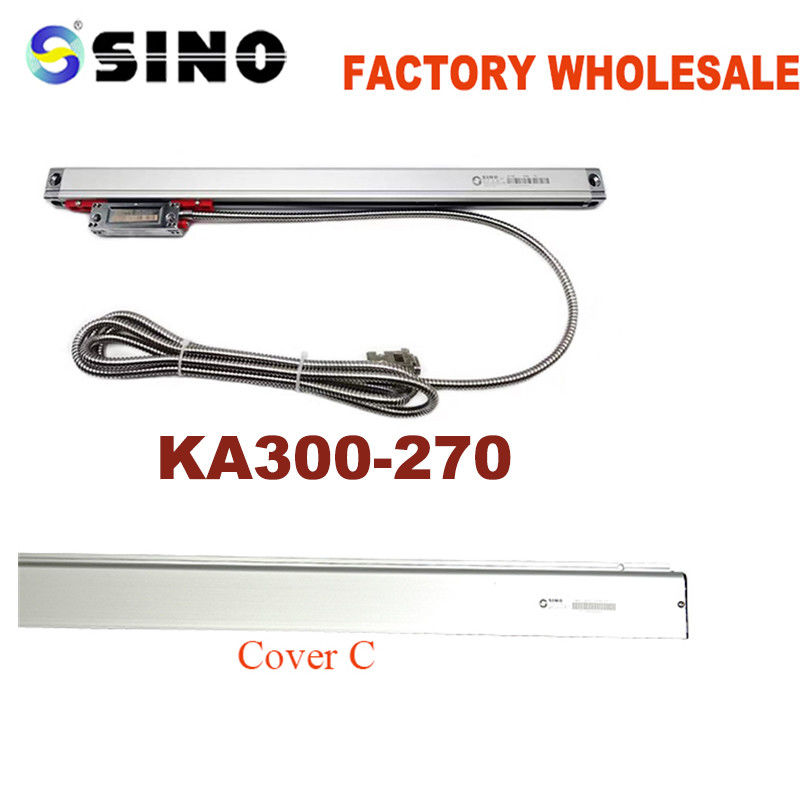

KA300 Linear Ruler x 1pc
Manual
Cover C
T-frameB3,D2
Product Information
| Item name | SINO DRO System SDS2-3MS |
| Digital Readout (DRO) | SDS 2-3MS |
| Power Voltage selection | AC 100V~240V 50 Hz~60 Hz |
| Power consumption | 25VA |
| Working temperature | 0℃~45℃ |
| Allowable input signal | TTL square wave |
| Length resolution | 5um, 1um, 0.5um |
| Storage temperature |
-30℃~70℃ |
| Others | Cable / Manual |
Customized lengths of the encoder (L0) can be provided according to the users' needs.(Length:70-520mm)
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Packing&Delivery
