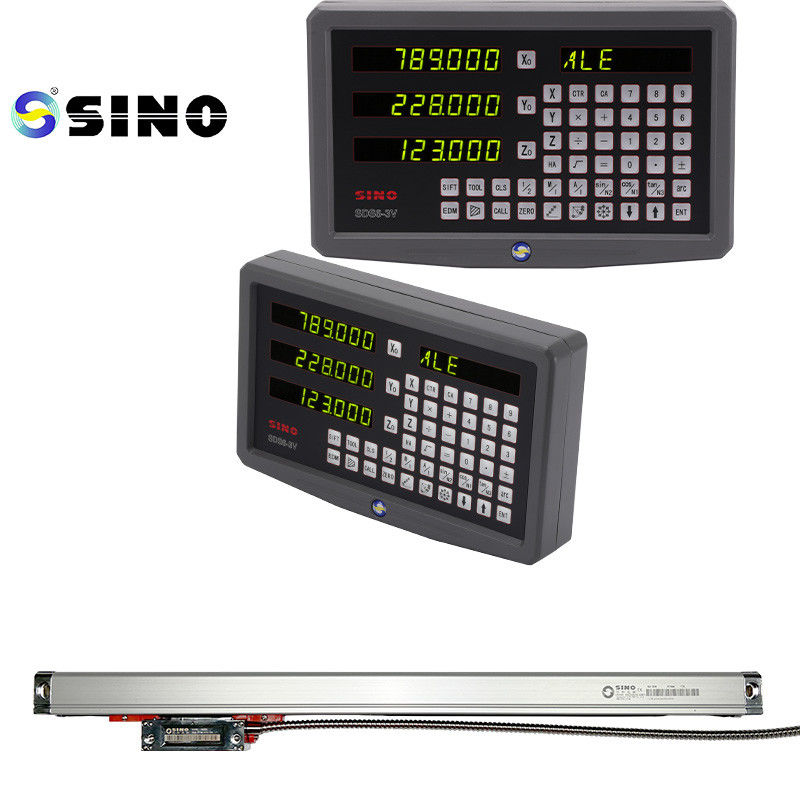

Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe

Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe
Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe
Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe

Large Image :  Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: SDS6-3V, KA300, Ka500
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 pcs per month

Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe

Description
Name: SDS6-3V Opitical Sensor KA300 Linear Scale Number Of Axis: 3 Axis Dro
Shipping Time: 10-15 WorKing Days After Full Payment Signal: Digital Readout: TTL / RS422
Voltage: Digital Readout: AC100-240V / 50-60Hz Suitable For: Milling Machine, Lathe, Boring Machine, EDM Machine, Grinding Machine
Output: Other
Highlight:

Opitical Sensor 3 Axis Digital Readout

,

Lathe 3 Axis Digital Readout

Linear Scale Digital Readout 2/3 Axis DRO Opitical Sensor for Milling Machine Lathe





SDS6-3V digital readout employs the newest 16 bit SCM technology, can substitute all kinds of basic function and special required function of SDS2 series, and all-purpose DRO

The speed of measurement it faster, and the contron system is easier and smoother.

Each axis can supply 40 point of non-linear compensations.


Improved Functions of SINO Opitical Sensor

  1. EDM functions: Combine with two kinds of EDM processing function of common DRO SDS2 and it can be set flexible.
  2. Lathe's axes-accumulative sampling function: We can choose to display the accumulative value of the axes Y and Z or the singleness value of  each one(Axes Y, Z are  correspond to Z, Z0 of old model SDS2). During this function. users can separate the data of axes Y by using relecantly buttons in order to observe the singlenss date of axes Y. In the separation mode, we can set the value of axes X, Y and Z, it has complete functions for the lathe requires three axes.

Specifications of SINO SDS6-3V Digital Readout System



Supply Voltage range: AC 80V~260V; 50~60Hz,US Plug available

Power consumption: 15VA

Operating temperature: 0~45 degrees centigrade

Storage temperature: -30~70 degrees centigrade

Readout allowable input signal: TTL/RS422 square wave

Allowable input signal frequency: Less than 5MHz

Display resolution: 5µm/1µm/0.5µm/0.1µm

Min resolution of digital display angle : 0.0001/pulse





Packaging List :

1 PC 3 Axis LED digital readout SDS6-3V
1 PC  Protection cover
1 PC Instruction Manual (English)
1 PC Cable



Product image /photos:

Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe 0

Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe 1

Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe 2

The rack in the picture is optioned, not standard product.



Linear Scale 2 / 3 Axis Digital Readout DRO Opitical Sensor For Milling Machine Lathe 3
