Product Details:
|
| Name: | Sino SDS5-4VA Display Digital Readout Linear Encoder | Number Of Axis: | 4 Axis DRO Measuring Machine |
|---|---|---|---|
| Color: | Grey | Signal: | Digital Readout Kits: TTL / RS422 |
| Voltage: | Digital Display Controller: AC100-240V / 50-60Hz | Suitable For: | Milling Machine, Boring Machine, EDM Machine |
| Resolution: | 1um,5um,0.5um | Material: | Metal |
| High Light: | 0.5um SINO Digital Readout System,5 Axes SINO Digital Readout System |
||
SINO SDS5-4VA Digital Display 4 Axis 5 Axes LCD Screen Digital Readouts System
The SDS5 DRO adopt the late-model 32bits embedded computing technology, 5.6'5 TFT colorful screem with Chinese and English captions, up to 4 axis, equipped with high-capicity hard disc, USB equipment can be in communication with PC at a high speed.
SDS5-4VA DRO Digital Readout DRO Functions:
PCD circumferential division (Applicable to milling machine and spark tester)
Involute chamber machining function (Applicable to milling machine)
Bevel machining/Angular Surface Processing (Applicable to milling machine)
N3 function (Applicable to milling machine)
Diagonal boring (Applicable to milling machine)
R-arc function (Applicable to milling machine)
Taper measuring function (Applicable to lathe)
200-tool library (Applicable to lathe)
Anti-dithering function (Applicable to grinding machine)
Specifications of SINO SDS5-4VA digital readout system + Grating Ruler
Specification
Item: SINO SDS5-4VA Digital Readout System
Type: Luxury Type DRO
Input: 4 axis
Iutput Signal: TTL/RS-422
Housing: Metal
Application: Glass Scales for CNC or manual Lathes, milling /boring/grinding machine,EDM
Uage: Position Measuring Instrument for single/2/3/4 Axis grating scale
Certification: CE,ROHS,ISO9001
Sealing Protection Class: IP67
Feature: Sturdy and durable, easy to install,user-friendly
Machinery Test Report: Provided
| 1 PC | 3 Axis LED digital readout SDS5-4VA |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

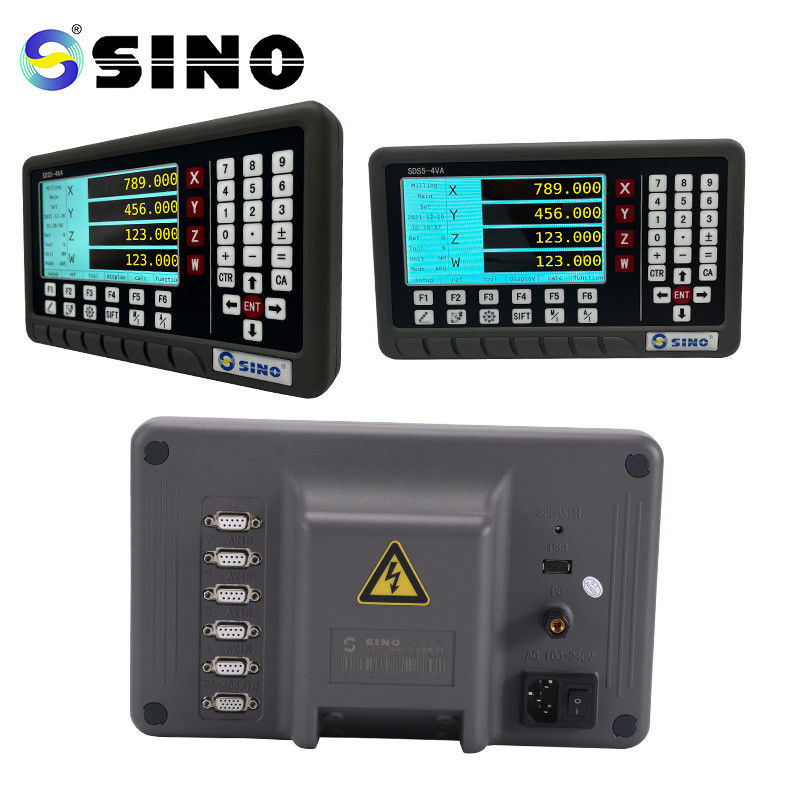

Product image /photos:
The rack in the picture is optioned, not standard product.
