Product Details:
|
| Name: | Sino SDS5-4VA Display Digital Readout Linear Encoder | Number Of Axis: | 4 Axis DRO Measuring Machine |
|---|---|---|---|
| Color: | Grey | Signal: | Digital Readout Kits: TTL / RS422 |
| Voltage: | Digital Display Controller: AC100-240V / 50-60Hz | Suitable For: | Milling Machine, Boring Machine, EDM Machine |
| Resolution: | 1um,5um,0.5um | Material: | Metal |
| High Light: | Lathe Digital Readout Counter System,SINO Digital Readout Counter System |
||
4 Axis DRO SINO SDS5-4VA Lathe Digital Readout Counter System Glass Linear Scale
Path sumilation function is also be provided in DRO. After being chosen the program it is eidely used in milling machine, precion coordinate boring machine, ground boring machine, precision boring machine, precision grinding machine, lathe, EDM and other different special functions.
SDS5-4VA DRO Digital Readout DRO Functions:
Non-linear Error Compensation
PCD Hole Positioning on Ciroumference
200 Points Auxiliary Zero Position Function
High-capacity ROM disc for storage
Real time coordinate transmission with RS232
File transmission Function through USB
Four coordinate systems are adopted in this system, namely, machine coordinate system.
Specifications of SINO SDS5-4VA digital readout system + Optical Linear Scale
Specification
Item: SINO SDS5-4VA Digital Readout System
Type: Luxury Type DRO
Input: 4 axis
Iutput Signal: TTL/RS-422
Housing: Metal
Application: Glass Scales for CNC or manual Lathes, milling /boring/grinding machine,EDM
Uage: Position Measuring Instrument for single/2/3/4 Axis grating scale
Certification: CE,ROHS,ISO9001
Sealing Protection Class: IP67
Feature: Sturdy and durable, easy to install,user-friendly
Machinery Test Report: Provided
| 1 PC | 3 Axis LED digital readout SDS5-4VA |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

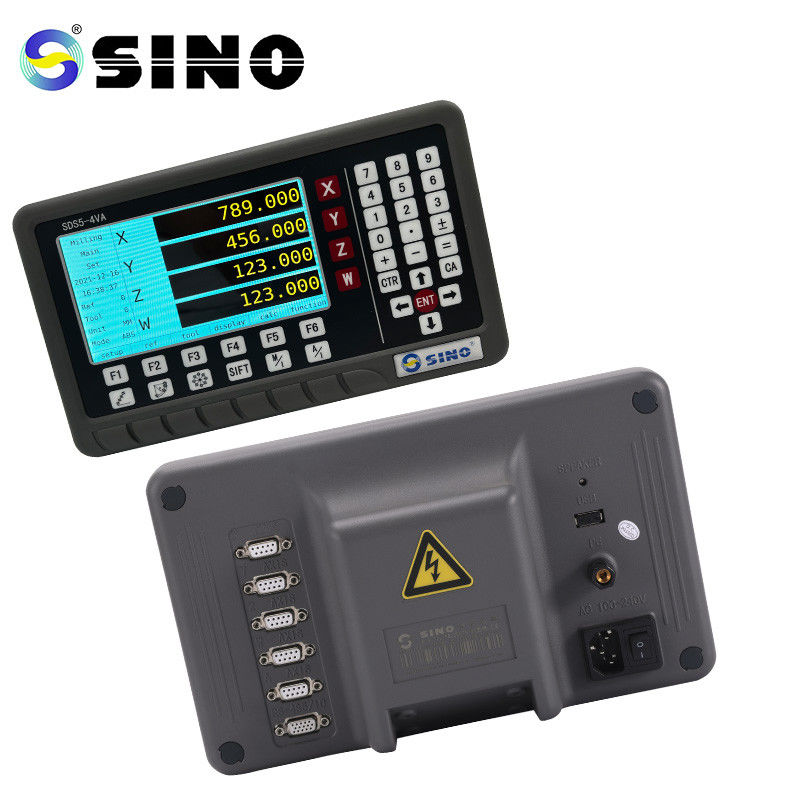

Product image /photos:
The rack in the picture is optioned, not standard product.
