|Name:||Digital Display Controller SDS6-2V Optical Sensor||Number Of Axis:||2 Axis DRO System|
|Color:||Grey||Display:||7 Digits LED|
|Signal:||Digital Readout: TTL / RS422||Voltage:||Grating Linear Scale Sensor: AC100-240V / 50-60Hz|
|Suitable For:||Milling Machine, Lathe, Boring Machine, EDM Machine, Grinding Machine|
7 Digits DRO Digitial Readout Kit,
2 Axis DRO Digitial Readout Kit
Milling Lathe DRO Digitial Readout Kit Sino SDS6-2V 2 Axis Optical Linear Glass Scale
SDS6-2V digital readout employs the newest 16 bit SCM technology, can substitute all kinds of basic function and special required function of sds2 series, an all- purpose DRO.
Basic Functions of SDS6-2V Digital Readout
200 Points Auxiliary Zero Position Function
"mm/inch" Conversion Display
Radius/Diameter Switch Display
Segmented Error Compensation
Linear Error Compensation
Power Interruption Memory
RS-232-C ineterface (option)
Improved Functions of Sino Digital readout system SDS6-2V DRO
Double seals design for better protection against water;
100% laser calibration;
advanced optical measuring system;
high noise immunity and EMC design;
high reliability and durability switch design;
robust casting, chromium plated panel;
ultra low temperature rise transformer;
ergonomically designed keyboard;
can be easily installed.
The DRO SDS6-2V is a Multifunctional 2 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.
|1 PC||2 Axis LED digital readout SDS6-2V|
|1 PC||Protection cover|
|1 PC||Instruction Manual (English)|

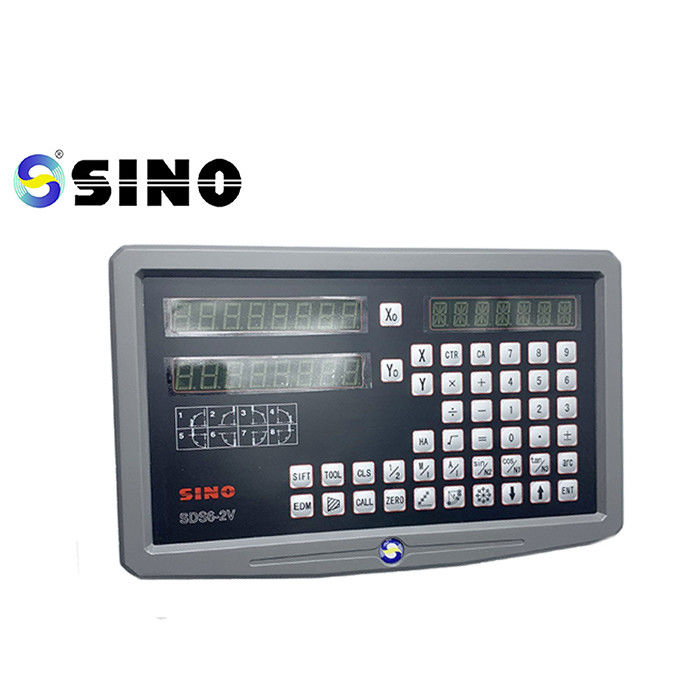

Product image /photos:
The rack in the picture is optioned, not standard product.
