Product Details:
|
| Item Name: | 3 Axis Mini Size Metal LCD Milling Machine Readout Kit | Usage: | Milling Machine Boring Machine |
|---|---|---|---|
| System: | Large Size Milling Readout SDS200s | Scale Model: | Linear Rulers: KA-600, KA-300, KA-500 |
| Signal: | Linear Rulers: TTL / RS422 | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. Travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| High Light: | SDS200S 3 Axis Digital Readout,SINO 3 Axis Digital Readout |
||

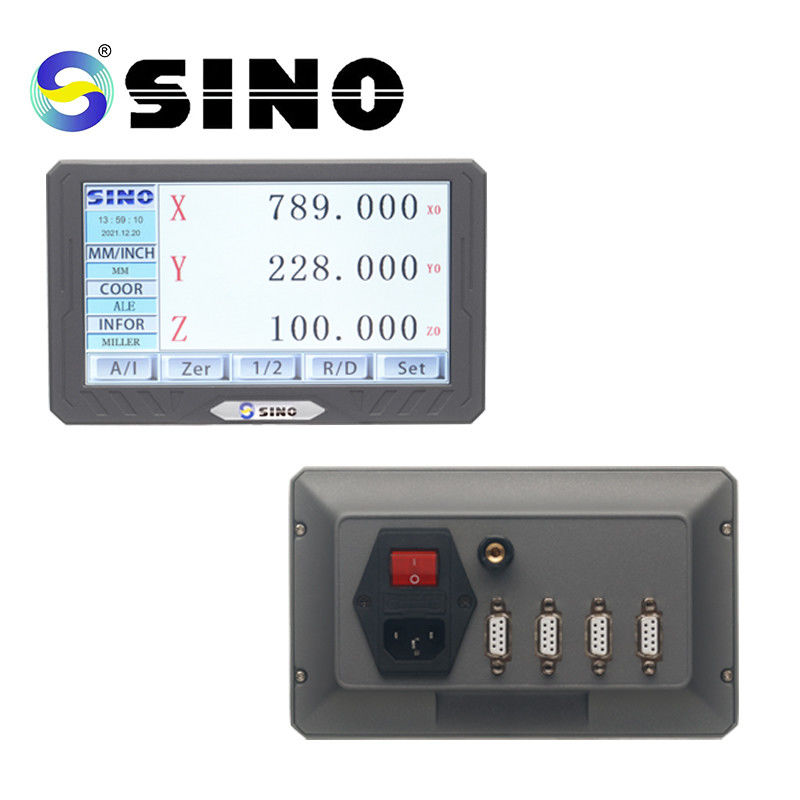

SINO SDS200S 3 Axis LCD Touch Screen Digital Readout DRO Linear Scale Display Counter For Milling Machine
The kit is special for 3 axis mini size milling machine requirements.
One LCD display readout SDS200s with two standard linear rulers KA-600 or KA-300.
KA-600 linear ruler: 1000 - 3000mm
KA-300 linear ruler: 70 - 1020mm
Package list:
| Item name | 3 axis mini size metal LCD milling machine Readout kit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Support 5 languages, including Chinese, German, French, English, Spanish
-Touch Screen, simple to use
-Simple system, easy to operate
-Big LCD display, clearly show
Features
The LCD display accepts all Chinese optical linear glass scales and widely used for lathe, drilling, boring and milling machine.
It can exchange 5 languages by system in one display, more functional for lathe & milling machine for the users from different countries.
Parameter
Model: SDS200S
Input voltage: AC80V-240V
Input signal: TTL
Material: Metal cover
Plug: AU, EU, US, UK etc.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
