SINO SDS200S Metal 3 Axis LCD Digital Readout Display DRO Kit Grating Scale Encoder

Brand Name:	SINO
Model Number:	SDS200s, KA-600, KA-300
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Item Name:

3 Axis Super Mini Size Metal LCD Display Milling Machine Readout Kit

Usage:

Milling Machine Boring Machine EDM

System:

Small Size Milling Readout SDS200s

Scale Model:

Linear Rulers: KA-600, KA-300, KA-500

Signal:

Linear Rulers: TTL / RS422

Resolution:

Linear Rulers: 0.005mm/0.001mm

Voltage:

Readout Power: AC 100V-240V

Meas. Travel:

Linear Rulers:1000-3000mm, 70-1020mm

Supply Ability:

3000 sets per month

Highlight:

LCD Digital Readout Display DRO Kit

SINO Digital Readout Display DRO Kit

Product Description

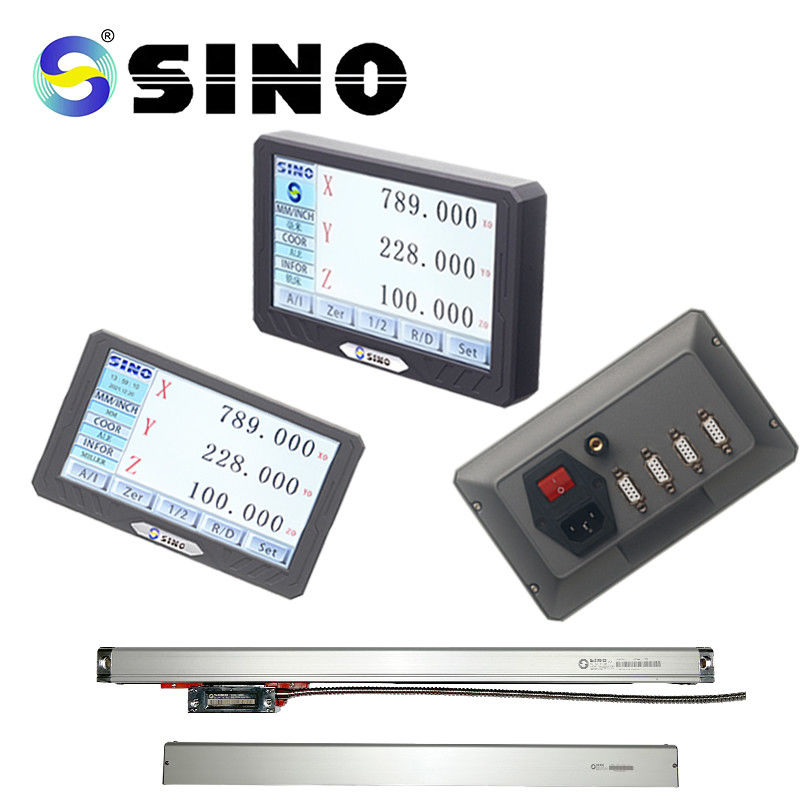

SINO SDS200S Metal 3 Axis LCD Digital Readout Display DRO Kit Grating Scale Encoder

The kit is special for 3 axis mini size milling machine requirements.

One LCD display readout SDS200s with two standard linear rulers KA-600 or KA-300.

KA-600 linear ruler: 1000 - 3000mm

KA-300 linear ruler: 70 - 1020mm

Package list:

Item name	3 axis mini size metal LCD milling machine Readout kit
Digital Readout (DRO)	SDS200
Linear scale for axis X	1000-3000mm
Linear scale for axis Y	70-1020mm
Rack for DRO	L400
Protection cover for X scale	Type M
Protection cover for Y scale	Type D
Bracket for scales	T-bracket (1 or 2 sets, depend on the size)
Others	Cable / Screws / Manual

Advantages

-Support 5 languages, including Chinese, German, French, English, Spanish

-Touch Screen, simple to use

-Simple system, easy to operate

-Big LCD display, clearly show

Specifications of SINO SDS200S digital readout systems and linear scale encoder

The SDS200 offers a high performance universal display console with Milling, Lathe and Grinding functions.

This 4 axis model allow up to 4 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.

Durable front panel membrane with tactile switches and robust die cast housing.

Large easy to read LCD display.

Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

Detail Information:

SINO SDS200S Metal 3 Axis LCD Digital Readout Display DRO Kit Grating Scale Encoder 0

SINO SDS200S Metal 3 Axis LCD Digital Readout Display DRO Kit Grating Scale Encoder 1

Pin Description:

SINO SDS200S Metal 3 Axis LCD Digital Readout Display DRO Kit Grating Scale Encoder 2

All linear scales were tested before delivery. Here is a sample of a scale's test report.

SINO SDS200S Metal 3 Axis LCD Digital Readout Display DRO Kit Grating Scale Encoder 3
