Product Details:
|
| Item Name: | 3 Axis Full Touch Screen Milling Machine Digital Readout Kit | Usage: | Milling Machine Griding Machine EDM |
|---|---|---|---|
| System: | Small Size Lathe Boring Machine Readout SDS200s | Scale Model: | Grating Linear Rulers: KA-600, KA-300, KA-500 |
| Signal: | Linear Scale: TTL / RS422 | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. Travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| High Light: | SINO SDS200S Digital Readout Kits,DRO Grating Ruler Digital Readout Kits |
||

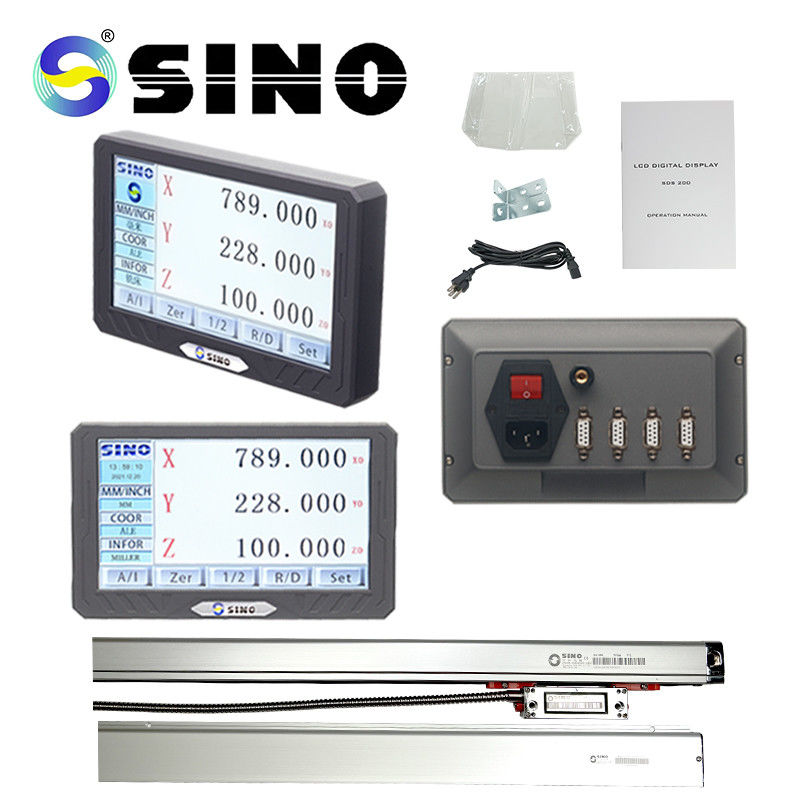

SINO SDS200S 3 Axis LCD Full Touch Screen Digital Readout DRO Grating Ruler Rotary Encoder
The DRO SDS200S is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.
Package list:
| Item name | 3 axis mini size metal LCD milling machine Readout kit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Support 5 languages, including Chinese, German, French, English, Spanish
-Touch Screen, simple to use
-Simple system, easy to operate
-Big LCD display, clearly show
Specifications of SINO SDS200S digital readout systems and linear scale encoder
The SDS200 offers a high performance universal display console with Milling, Lathe and Grinding functions.
This 4 axis model allow up to 4 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.
Durable front panel membrane with tactile switches and robust die cast housing.
Large easy to read LCD display.
Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.
