Product Details:
|
| Name: | SDS6-3V DRO Sensor KA500 Linear Scale | Number Of Axis: | 3 Axis Dro |
|---|---|---|---|
| Material: | Iron | Signal: | Digital Readout: TTL / RS422 |
| Voltage: | Digital Readout: AC100-240V / 50-60Hz | Suitable For: | Milling Machine, Boring Machine |
| Resolution: | 1um,5um,0.5um | ||
| High Light: | Iron 3 Axis Digital Readout,DRO Milling 3 Axis Digital Readout |
||
Iron AC100V - 240V Digital Readout Systems DRO Milling Machine Digital Display Meter
Description of Digital Readout Systems DRO
Digital Readout (DRO) Systems are used for indicating the position of the cutting tool relative to a workpiece. The positions are detected by encoders mounted on the axis. They feature a numeric display and keyboard. DRO systems are used with milling and boring machines, lathes and surface grinders.
Digital Readout Systems DRO Details:
Resolution switch function
Bolt hole patterns, centerline calculation
Preset set and zero reset , tool error compensation
Absolute /Incrmental ,Inch / Metric
Message Prompts, Memory back-up
85V-250V, Can be used Globally
Specification of Digital Readout Systems DRO
| 1 PC | 3 Axis LED digital readout SDS6-3V |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

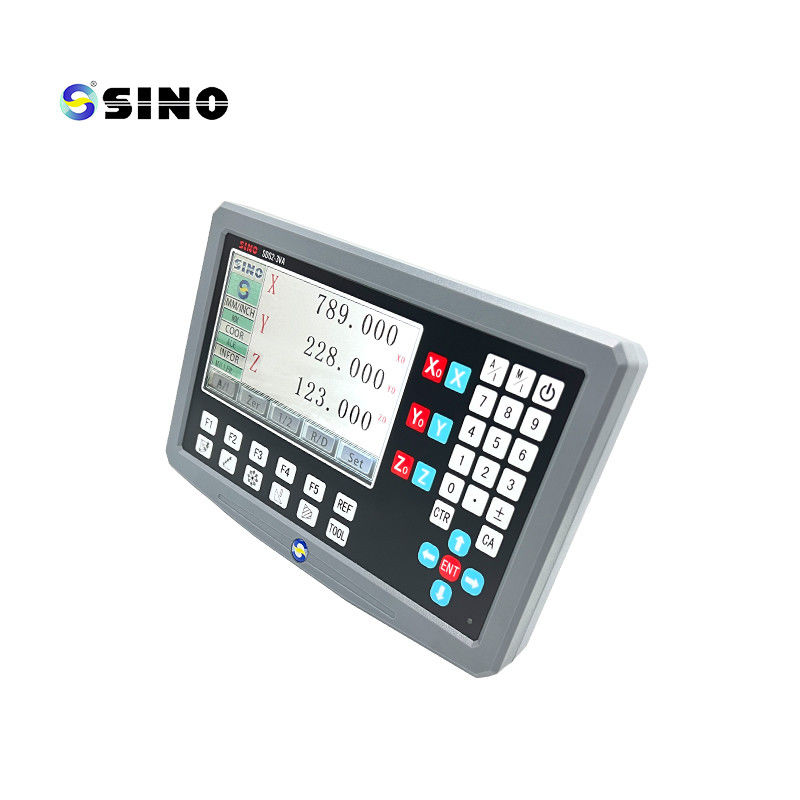

Product image /photos:
The rack in the picture is optioned, not standard product.
