Product Details:
|
| Item Name: | Lathe Machine DRO Metal LCD Display Milling Machine Readout Kit | Usage: | Griding, Boring, Milling Machine |
|---|---|---|---|
| System: | Dro Measuring Systems SDS200s | Scale Model: | Linear Rulers: KA-600, KA-300, KA-500 |
| Signal: | Digital Readout Screen Linear Rulers: TTL / RS422 | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. Travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| High Light: | SDS200s 3 Axis Digital Readout,3 Axis Digital Readout DRO,Muti Function 3 Axis Digital Readout |
||

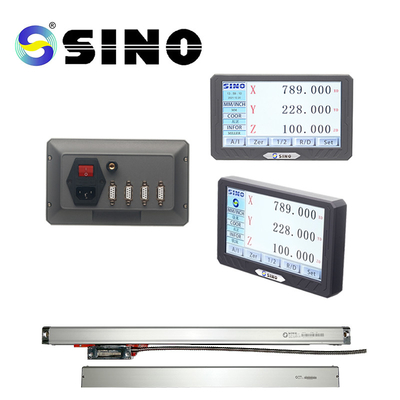

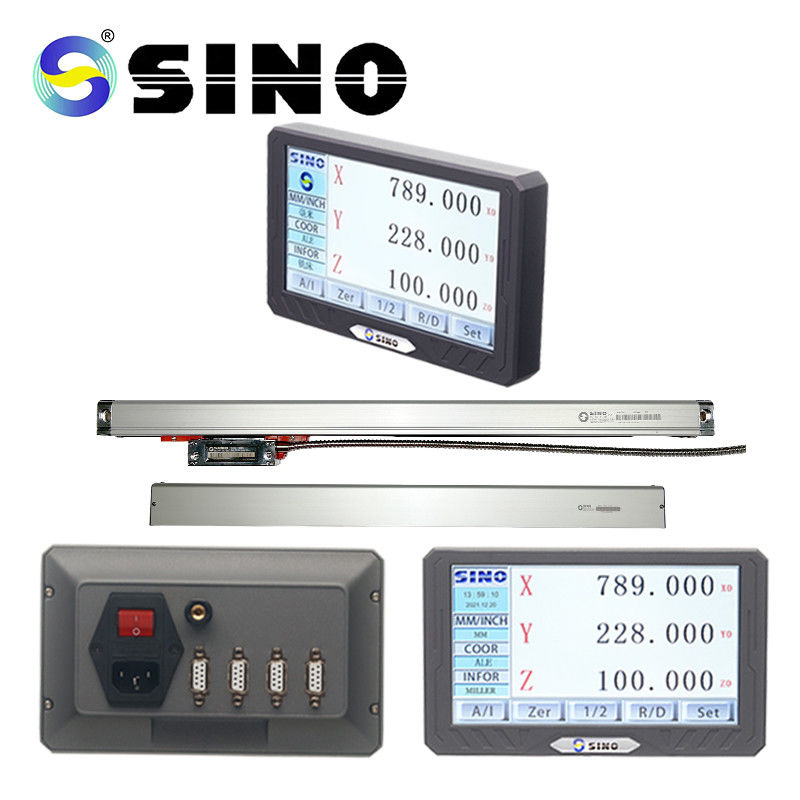

SINO SDS200S Metal 3 Axis LCD Digital Readout Display DRO Kit Grating Scale Encoder
The kit is specifically designed to meet the needs of 3 axis small milling machines.
Two common linear rulers, the KA-600 or the KA-300, and one LCD display readout, the SDS200s.
Linear ruler KA-600: 1000 - 3000mm
Package list:
| Item name | Miniature metal LCD milling machine with three axes Reader's kit |
| Digital Readout (DRO) | SDS200S |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Support 5 languages, including Chinese, German, French, English, Spanish
-Touch Screen, easy to use
-Simple system, easy to operate
-Big LCD display, clearly show
Specifications of the SINO SDS200S linear scale encoder and digital readout systems
A high-performance universal display console with capabilities for milling, turning, and grinding is available with the SDS200.
This four-axis variant supports a maximum of four connected linear encoders. Additional connectors can be used to combine axes or change the input to fit the needs of equipment made by different manufacturers. Please refer to the guide below for encoder compatibility.
Durable front panel membrane with tactile switches and robust die cast housing.
Large easy to read LCD display.
Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
