Product Details:
|
| Item Name: | 3 Axis Super Mini Size Metal LCD Display Milling Machine Readout Kit | Usage: | Milling Machine Boring Machine EDM |
|---|---|---|---|
| System: | Small Size Milling Readout SDS200S | Scale Model: | Linear Rulers: KA-600, KA-300, KA-500 |
| Signal: | Linear Rulers: TTL / RS422 | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. Travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| High Light: | SINO 200S Digital Readout Kits,DRO Optical Sensor Digital Readout Kits |
||

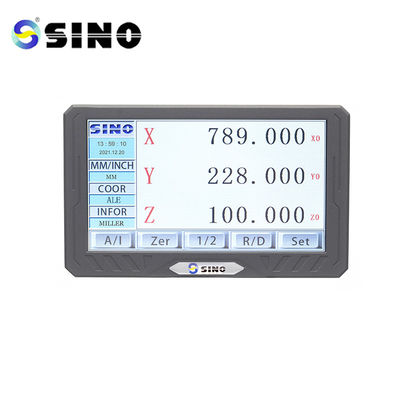

SINO 200S Milling Machine Digital Readout DRO Optical Sensor Linear Scale System
The kit is special for 3 axis mini size milling machine requirements.
One LCD display readout SDS200s with two standard linear rulers KA-600 or KA-300.
KA-600 linear ruler: 1000 - 3000mm
KA-300 linear ruler: 70 - 1020mm
Package list:
| Item name | 3 axis mini size metal LCD milling machine Readout kit |
| Digital Readout (DRO) | SDS200S |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Function
Alarm function: The digital multimeter can set an alarm threshold, and when the measured electrical quantity exceeds the set value, it will sound or flash to remind the user.
Phase detection: The digital multimeter can detect the phase difference between voltage and current in the circuit to determine if the circuit is working properly.
Peak value detection: The digital multimeter can detect the peak value of the measured electrical quantity, which is used to analyze transient processes in the circuit.
Specifications of SINO SDS200S digital readout systems and linear scale encoder
A digital multimeter is an electronic measuring instrument that displays numerical readings.
Digital multimeters typically have features such as automatic range switching, data storage, alarm functions, and phase detection, making it easy and fast to complete various electrical measurements and analyses.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
