SINO SDS200S Digital Readout Kits With Display Touch Screen Linear Scale Encoder 100KHz

Brand Name:	SINO
Model Number:	SDS200S
MOQ:	1 set
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS,ISO9001

Item Name:

Mini Digital Readout Unit SDS2MS

Usage:

Lathe/Milling Machine DRO

System:

System For Digital Readout SDS200S

Axis:

Display For 3 Axes DRO

Touch Screen Display:

Support

Display Voltage:

100-240V / 50-60Hz

Time Display:

Support

Supply Ability:

3000 sets per month

Highlight:

SDS200S Digital Readout Kits

100KHz Digital Readout Kits

Product Description

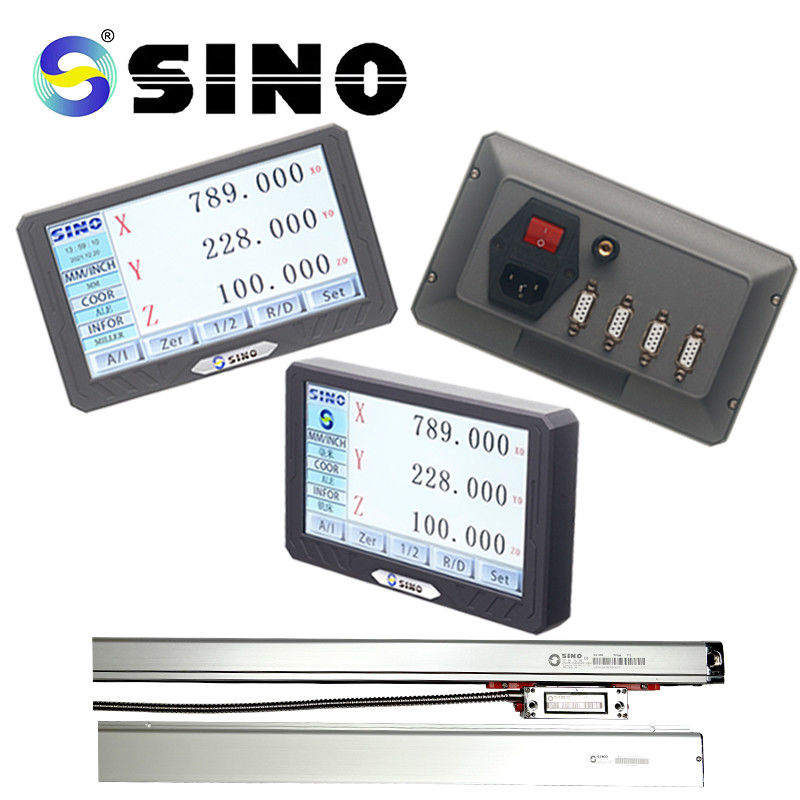

SINO SDS200S Digital Readout Kits With Display Touch Screen Linear Scale Encoder

Parameters for the Sino SDS 200S digital display

1. voltage range: 50 Hz to 60 Hz/AC 100 v to 240 v;

2. Power use of 25 VA;

3. There are three coordinates in all;

4. 7-inch touch screen;

5. input signal: RS-422 and TTL;

6. Maximum input signal frequency: more than 100 KHz;

7. resolution: 10, 5, 2, 1, 0.5, and 0.2 microns 0.05 microns, 0.1 microns, and 0.05 microns

benefits of meters with digital displays.

1, a thin, light aluminum alloy body with an industrial-grade, high-sensitivity touch screen, enabling functional tasks that are simple to learn and use, giving a logical graphical user interface, and enhancing job productivity;

2, the use of a main chip with a powerful performance, considerably enhanced program operation stability, high sampling rate, and precision, and a main board processing data to offer a powerful source of power;

3. the use of a 7-inch, high-resolution touch screen that is industrial-grade, with precise clicks, high display brightness, a clear hierarchy, quick refresh rates, and the ability to gather and display text and visual data easily;

4. A powerful hardware design in conjunction with expert software allows for the achievement of more complex EMC test indications and a greatly improved anti-interference capacity to accommodate various processing settings.

Package list:

Item name	3 axes Digital Readout unit
Model	SDS200S
Linear scale for axis X	KA-600 / KA-300: 70-3000mm
Linear scale for axis Y	KA-600 / KA-300: 70-3000mm
Linear scale for axis Z	KA-600 / KA-300: 70-3000mm
Rack for DRO	Rack L400
Accesories	Cable / Screws / Manual

Detail Information:

SINO SDS200S Digital Readout Kits With Display Touch Screen Linear Scale Encoder 100KHz 0

SINO SDS200S Digital Readout Kits With Display Touch Screen Linear Scale Encoder 100KHz 1

Pin Description:

SINO SDS200S Digital Readout Kits With Display Touch Screen Linear Scale Encoder 100KHz 2
