Product Details:
|
| Item Name: | Metal LCD Milling Machine Readout Kit With 3 Axis | Usage: | Machines For Milling And Boring |
|---|---|---|---|
| System: | SDS200s Large Size Milling Readout | Scale Model: | The KA-600, KA-300, And KA-500 Linear Rulers |
| Signal: | Linear Rulers: TTL / RS422 | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. Travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| High Light: | SINO SDS200S Digital Readout Kits,DRO Linear Scale Digital Readout Kits |
||

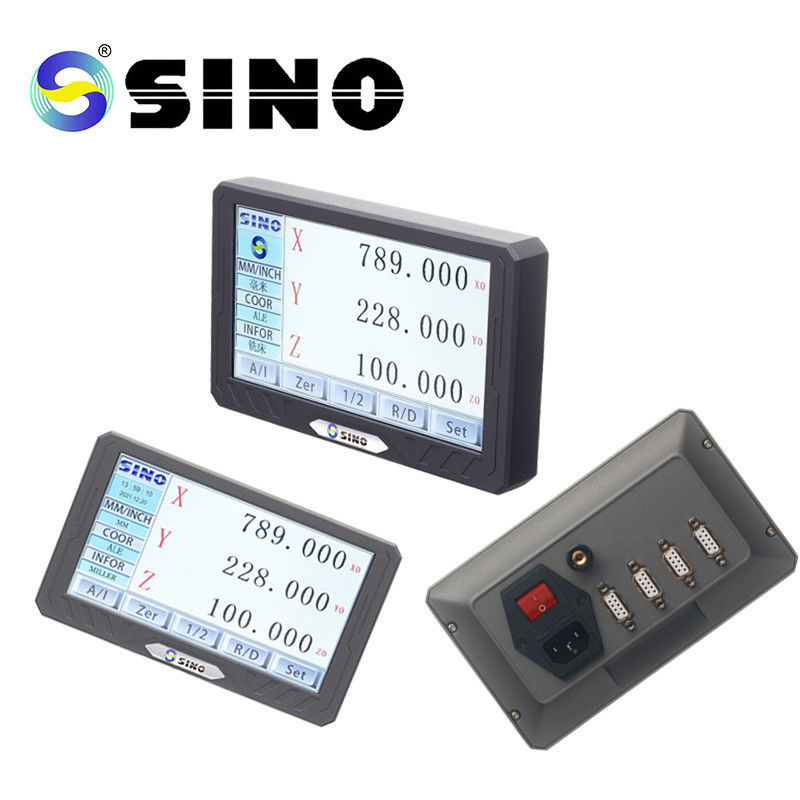

For Milling Machine SINO SDS200S 3 Axis LCD Touch Screen Digital Readout DRO Linear Scale Display Counter
The kit is special for 3 axis mini size milling machine requirements.
One LCD display readout SDS200s with two standard linear rulers KA-600 or KA-300.
KA-600 linear ruler: 1000 - 3000mm
KA-300 linear ruler: 70 - 1020mm
Package list:
| Item name | 3 axis mini size metal LCD milling machine Readout kit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Support for five languages: Chinese, German, French, English, and Spanish
-Touch Screen, easy to use
Simple, user-friendly system
-Large LCD screen that clearly shows
Specifications of SINO SDS200S DRO encoder
A high-performance universal display console with capabilities for milling, turning, and grinding is available with the SDS200S.
This three-axis type allows for the connection of up to three linear encoders. Additional connectors can be used to combine axes or change the input to fit the needs of equipment made by different manufacturers. Please refer to the documentation below for encoder compatibility.
sturdy die cast casing and a front panel membrane with tactile switches.
a large, simple-to-read LCD display.
PCD, line of holes, 200 zero memory, radius/diameter display, and tool offsets are just a few of the features.
A multifunctional three axis digital readout is the DRO SDS200S. By altering the system settings, it can adapt to the various machining requirements. It offers several graphical machining features, including: Measurement for Taper Function, Digital Filter Function, Angular Surface Processing, circular evenly splitting holes, drilling holes along oblique lines, and Arc Calculation Function. These features make the graphics function easier to use. It is the first plant in China to use a 16- and 32-bit calculator in a DRO system, and the input frequency of the DRO system, up to 5MHZ with A/B, is among the highest in the world.
