SINO 2 Axis DRO Digital Readout Multifunctional TTL Input Signal For Milling Machine

Name: SINO 2 Axis DRO Digital Readout Multifunctional TTL Input Signal For Milling Machine
Brand: Guangzhou Sino International Trade Co.,Ltd
SKU: SDS6-2V
Availability: InStock

Brand Name:	SINO
Model Number:	SDS6-2V
MOQ:	1 PC
Price:	Negotiable
Packaging Details:	Carton
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, CHINA

Certification:

CE,RoHS

Name:

Optical Sensor SDS6-2V Digital Display Controller

Number Of Axis:

DRO System With 2 Axis

Color:

Grey

Display:

7 Digits LED

Signal:

Digital Readout: TTL / RS422

Voltage:

Grating Linear Scale Sensor: 50–60 Hz, AC 100–240

Suitable For:

Machines For Milling, Turning, Drilling, Electro-discharge Machining, And Grinding

Supply Ability:

1000 pcs per month

Highlight:

2 Axis DRO Digital Readout

TTL Input Signal SINO Digital Readout

Product Description

SINO 2 Axis DRO Digital Readout multifunctional TTL Input Signal for Milling Machine

The SDS6-2V digital readout, an all-purpose DRO, uses the most recent 16 bit SCM technology and can replace all types of basic and special functions required by the SDS2 series.

Basic Functions of SDS6-2V Digital Readout

Auxiliary Zero Position Function for 200 Points

Middle Split Action

Display of "mm/inch" conversion

Diameter/Radius Switch Display

Compensation for Segmented Errors

Compensation for Linear Errors

Memory for Power Interruptions

Bedtime Switch

Calculations in mathematics

Optional RS-232-C interface

Improved Functions of Sino Digital readout system SDS6-2V DRO

for improved water protection, use double seals;

well calibrated laser;

modern optical measuring apparatus;

excellent EMC design and noise immunity;

switch designs with excellent reliability and longevity;

strong casting, coated with chromium;

transformer with a very low temperature increase;

a keyboard with an ergonomic design;

is simple to install.

Specifications:

A multifunctional 2-axis digital readout is the DRO SDS6-2V. By altering the system settings, it can adapt to the various machining requirements. It contains several graphical machining features, including the ability to calculate arcs, drill holes with uniform spacing around the circumference, drill holes perpendicular to a line, process angular surfaces, calculate angles, measure taper, and use digital filters. These features make the graphics function easier to use. It is the first plant in China to use a 16- and 32-bit calculator in a DRO system, and the input frequency of the DRO system, up to 5MHZ with A/B, is among the highest in the world.

Packaging List :

1 PC	2 Axis LED digital readout SDS6-2V
1 PC	Protection cover
1 PC	Instruction Manual (English)
1 PC	Cable

Product image /photos:

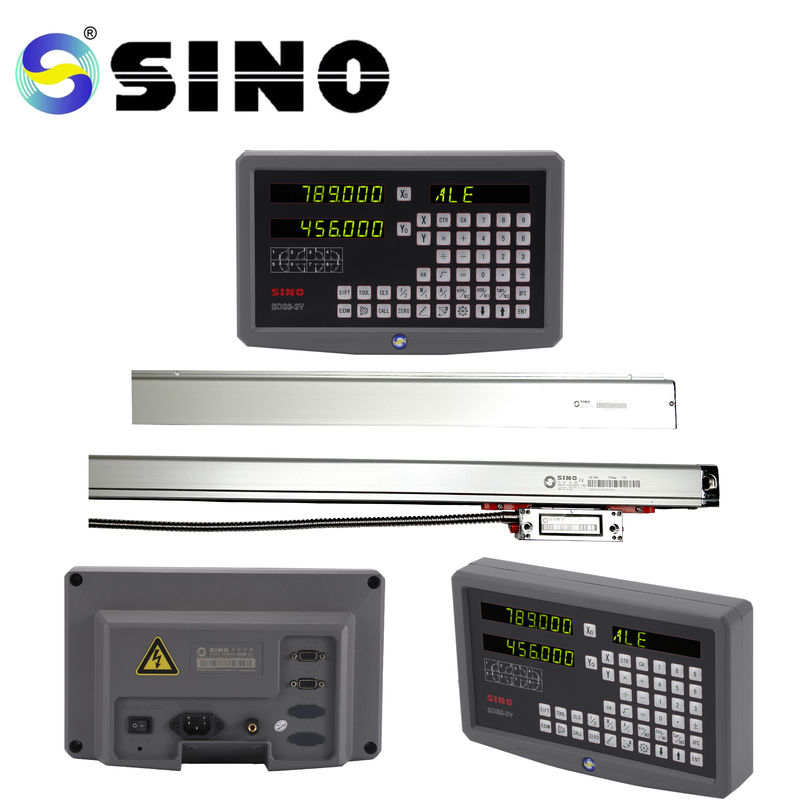

SINO 2 Axis DRO Digital Readout Multifunctional TTL Input Signal For Milling Machine 0

SINO 2 Axis DRO Digital Readout Multifunctional TTL Input Signal For Milling Machine 1

The rack in the picture is optioned, not standard product.

SINO 2 Axis DRO Digital Readout Multifunctional TTL Input Signal For Milling Machine 2
