Product Details:
|
| Item Name: | Milling Machine Readout Kit Lathe DRO Metal LCD Display | Usage: | Machine For Boring, Milling, And Griddling |
|---|---|---|---|
| System: | SDS200s Dro Measuring Systems | Scale Model: | The KA-600, KA-300, And KA-500 Linear Rulers |
| Signal: | TTL/RS422 Digital Readout Screen Linear Rulers | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. Travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| High Light: | SINO SDS200S Digital Readout Systems,DRO 3 Axis Digital Readout Systems |
||
SINO SDS200S Digital Readout Systems DRO 3 Axis KA300 Glass Linear Scale Encoder
The kit is specifically designed to meet the needs of 3-axis miniature milling machines.
The SDS200s is one LCD display readout, but the KA-600 or KA-300 are two common linear rulers.
1000 to 3000mm linear ruler, KA-600
Package list:
| Item name | Miniature metal LCD milling machine with three axes Reader's kit |
| Digital Readout (DRO) | SDS200S |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Five language support options: Chinese, German, French, English, and Spanish
-Touch Screen, easy to use
-Simple and intuitive system
-A large LCD screen with legible text
Specifications for the SINO SDS200S linear scale encoder and digital readout systems
A powerful universal display console with milling, turning, and grinding abilities is the SDS200.

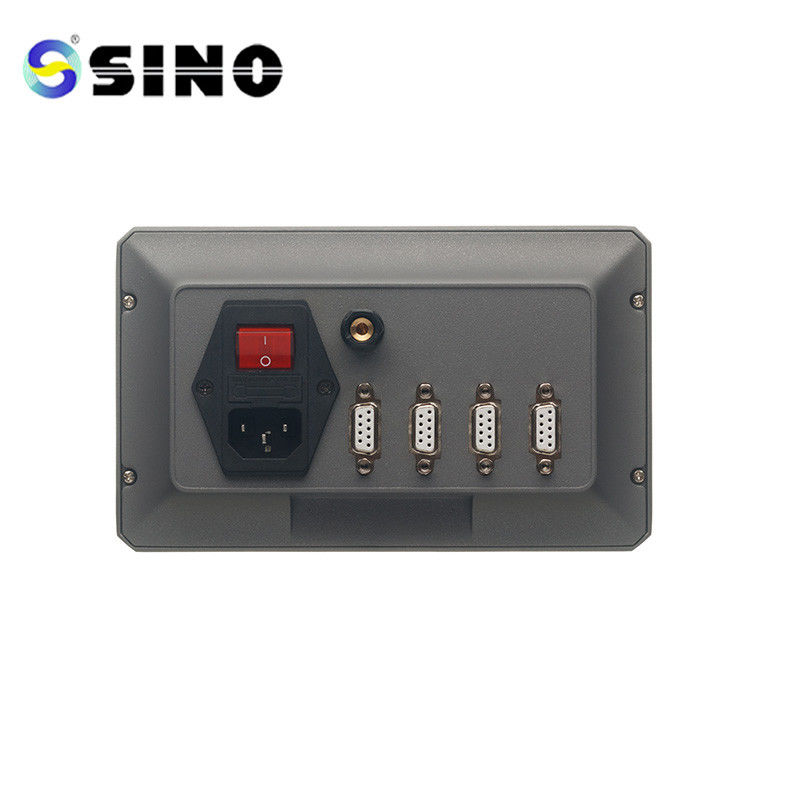

This four-axis version allows the use of a maximum of four linked linear encoders. In order to accept machinery made by different manufacturers, additional connections can be used to combine axes or adjust the input. For details on encoder compatibility, see the table below.
front panel membrane with tactile switches, strong die cast case.
a big, easy-to-read LCD screen.
Some of the features include PCD, line of holes, 200 zero memory, and radius/diameter display.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
