Product Details:
|
| Item Name: | Milling Machine Readout Kit Lathe DRO Metal LCD Display | Usage: | Machine For Boring, Milling, And Griddling |
|---|---|---|---|
| System: | SDS200s Dro Measuring Systems | Scale Model: | The KA-600, KA-300, And KA-500 Linear Rulers |
| Signal: | TTL/RS422 Digital Readout Screen Linear Rulers | Resolution: | Linear Rulers: 0.005mm/0.001mm |
| Voltage: | Readout Power: AC 100V-240V | Meas. Travel: | Linear Rulers:1000-3000mm, 70-1020mm |
| High Light: | LCD Digital Readout Display,3 Axis Digital Readout Display,SINO SDS200S Digital Readout Kits |
||

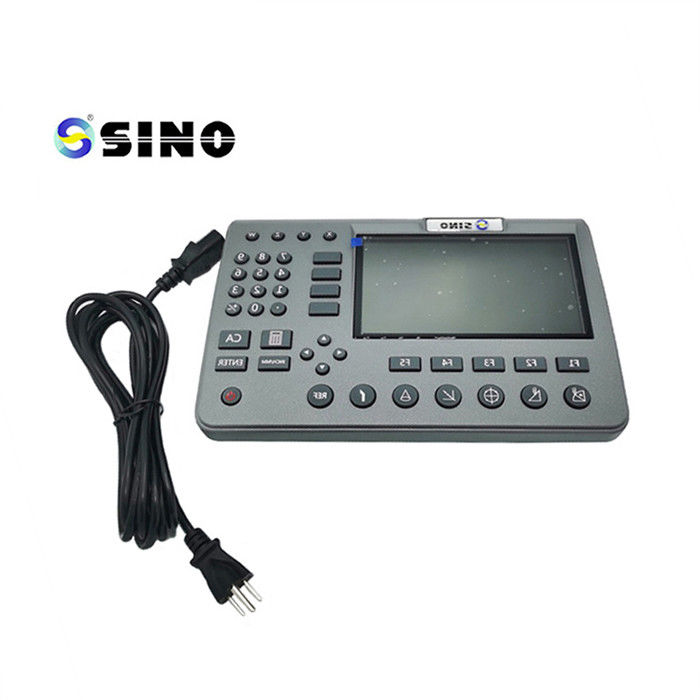

SINO SDS200S LCD Digital Readout Display DRO Kit 3 Axis For Linear Scale Encoder System
The 3-axis tiny milling machine requirements were particularly addressed in the design of the kit.
The KA-600 or KA-300 are two widely used linear rulers, whereas the SDS200s is one LCD display readout.
KA-600, 1000 to 3000 mm linear ruler
Package list:
| Item name | Miniature metal LCD milling machine with three axes Reader's kit |
| Digital Readout (DRO) | SDS200S |
| Linear scale for axis X | 1000-3000mm |
| Linear scale for axis Y | 70-1020mm |
| Rack for DRO | L400 |
| Protection cover for X scale | Type M |
| Protection cover for Y scale | Type D |
| Bracket for scales | T-bracket (1 or 2 sets, depend on the size) |
| Others | Cable / Screws / Manual |
Advantages
-Support for five languages: Chinese, German, French, English, and Spanish
-Touch Screen, simple to operate
-Easy to understand system
-An expansive LCD display with readable text
The SINO SDS200S linear scale encoder and digital readout systems' specifications
The SDS200 is a robust universal display console with milling, turning, and grinding capabilities.
A maximum of four linked linear encoders may be used with this four-axis version. Additional connectors that combine axes or change input can be used to accept machinery from various manufacturers. See the table below for more information about encoder compatibility.
tactile switches on the front panel membrane, sturdy die cast casing.
a sizable, simple to read LCD screen.
PCD, line of holes, 200 zero memory, and radius/diameter are a few of the features.
Detail Information:
Pin Description:
All linear scales were tested before delivery. Here is a sample of a scale's test report.
