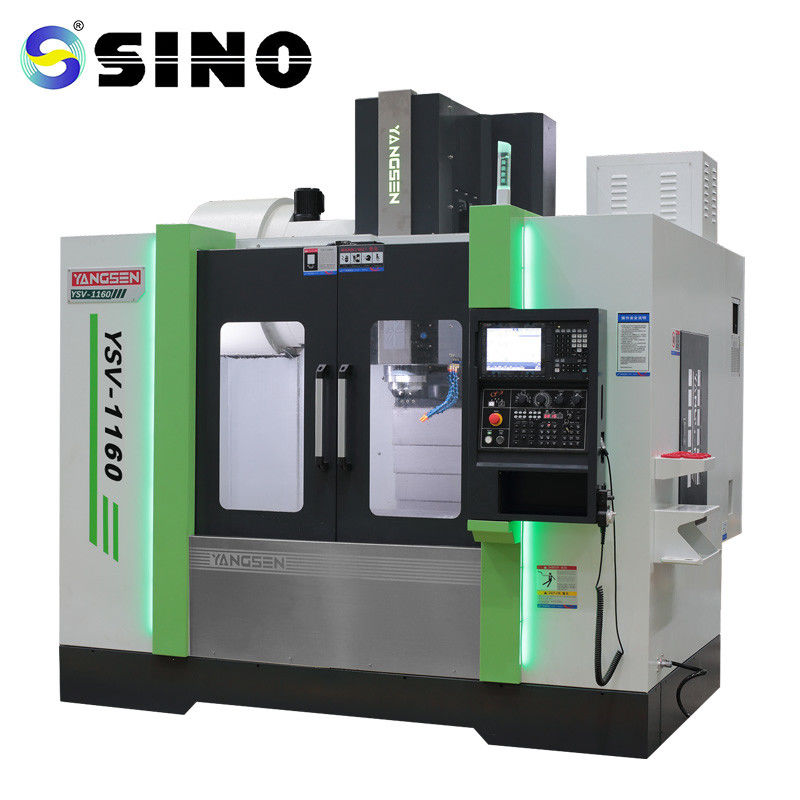

SINO YSV-1160 3 Axis Cnc Milling Machine Kit For Metal DDS Transmission Type

SINO YSV-1160 3 Axis Cnc Milling Machine Kit For Metal DDS Transmission Type
SINO YSV-1160 3 Axis Cnc Milling Machine Kit For Metal DDS Transmission Type SINO YSV-1160 3 Axis Cnc Milling Machine Kit For Metal DDS Transmission Type

Large Image :  SINO YSV-1160 3 Axis Cnc Milling Machine Kit For Metal DDS Transmission Type

Product Details:
Place of Origin: Guangzhou, CHINA
Brand Name: SINO
Certification: CE,RoHS
Model Number: YSV-1160
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 pcs per month

SINO YSV-1160 3 Axis Cnc Milling Machine Kit For Metal DDS Transmission Type

Name: Vertical Machine Center With 5 Axes Travel X/Y/Z: 1100/600/600mm
Size(L*W): 1200*600mm Max. Weight On Table: 1000kg
T-Slot: 5-18×100mm Spindle Taper: BBT40mm
Speed: 12000rpm Transmission Type: DDS
X/Y/Z Rapid Feedrate: 36/36/36 M/min Cutting FeedRate: 10000 M/min
High Light:

3 Axis Cnc Milling Machine Kit


SINO YSV-1160 Cnc Milling Machine Kit

SINO YSV-1160 3 Axis Cnc Milling Machine Kit for Metal Cnc Milling Vertical Machine



YSV-1160 machine features:

Ultra High Performance Machining Center
1. Using Taiwan frequency conversion tool magazine, the tool change time is shortened to 1.4S, which effectively improves the processing efficiency;
2. All three axes are equipped with high torque output as standard, fast and accurate positioning;
3. The spindle motor is equipped with a 11-15KW high-torque generalized motor as standard, and the spindle torque is significantly improved compared with other brands of the same model, which is very suitable for heavy cutting;
4. The machine tool parts belong to the famous brand of famous factory, and the advanced configuration in the industry.


YSV-1160 optical machine features:

1. The German Rexroth line rail is adopted, and the line rail width reaches 45mm;
2. The Y-axis has a super large span of 745mm;
3. Supported by 6 sliding seats on the X axis, strong rigidity ensures powerful cutting;
4. The three-axis adopts PMI outer diameter 40mm C3 grade screw, and the three-axis adopts NSK original bearing (3062), 3+2 mode, pre-tensioning treatment to prevent thermal displacement;
5. High-rigidity BBT spindle with outer diameter of 150mm, ring spray design;
6. Adopt Taiwan original ultra-high-speed cutting cylinder, the cutting time can reach 0.28S;
7. The bed of the machine tool is made of precision HT300 high-grade cast iron.


Product image /photos:


SINO YSV-1160 3 Axis Cnc Milling Machine Kit For Metal DDS Transmission Type 0


Installation, commissioning, acceptance, and training

1. Installation and commissioning: Our service engineer will visit the customer's plant as soon as the machine tool is delivered to do installation and commissioning as well as on-site training.

2. Customers have the option of sending operators to our company for a week or so of initial training, after which our firm will conduct on-site training at the customer's location during installation and commissioning.

3. Acceptance: Accuracy acceptance examines the items that can be examined at the customer's location and the inspection items that do not satisfy the inspection requirements, such as positioning accuracy, spindle taper hole accuracy inspection stick test, etc., in accordance with the ex-factory accuracy inspection table provided by the supplier.


For inspection and acceptance, the buyer will dispatch workers to the supplier's factory.


After-sales service concept

1. Pre-sales service: Janssen's sales representatives will present clients with the finest processing alternatives, including tool and fixture selection, option configuration, and machine tool selection.

administration of lubricating oil, cutting fluids, and other services. offering turnkey projects in addition.
2. Maintenance response time: We have a service crew of up to 26 people and a fully working service van at our disposal. As soon as we receive the user's failure notification, we will respond within two hours.

3. Parts inventory: Janssen has a specialized production facility and a full stock of parts in Xiamen. Each office maintains stockpiles of frequently used parts to provide users with the fastest repair components.

4. Maintenance of machine tools: All machine tools that are covered by a warranty period receive free maintenance services, and machine tools that are not covered by a warranty can pay affordable and fair fees for maintenance services. Plan the equipment management and maintenance process based on customer needs.

5. Maintenance fees after the warranty has expired: The standard for billing is made apparent at the actual cost, only the cost is incurred, and the user is treated with the concepts of openness, fairness, and fairness.
6. Special old user service department: closely monitor machine tool use and promptly address maintenance problems.
7. Maintenance oversight: The general manager also functions as the after-sales service department's director, monitoring the maintenance services' quality in real time and defending clients' rights.


the setting under which machines operate


1. Three-phase AC power supply; 380V 10%, 15%; 50Hz 1Hz
2. 840°C is the outdoor temperature.
3. relative humidity: 80%
4. For the air supply pressure, 0.6 to 0.8 MPA
