|Name:||Three-axis Vertical Machine Center||Travel X/Y/Z:||900/570/680mm|
|Max. Weight On Table:||1000kg||T-Slot:||5-18×90mm|
|Spindle Taper:||BBT40mm||X/Y/Z Rapid Feedrate:||30/30/30 M/min|
|Speed:||12000rpm||Cutting FeedRate:||10000 M/min|
DDS CNC Milling Machine,
0.005mm CNC Milling Machine,
High Precision Cnc Vertical Machining Center
High Precision Cutting CNC Milling Machine DDS CNC Vertical Machining Center 0.005mm
The frequency converter controls the knife arm, which reduces tool change time to 1.4 seconds and increases the efficiency of product processing. 1. The Taiwan frequency conversion tool magazine is used. 2. The spindle motor comes standard with a high-torque motor. Spindle nose includes a special labyrinth mechanism and labyrinth blowing device that effectively protects the spindle. Outer diameter up to 150 mm high durable Taiwan BBT short nose spindle. The spindle's top speed, which may exceed 8000 rpm, possesses the qualities of high speed, high rigidity, and high precision.
3. The machine tool parts come from renowned factories with high configuration and well-known brands.

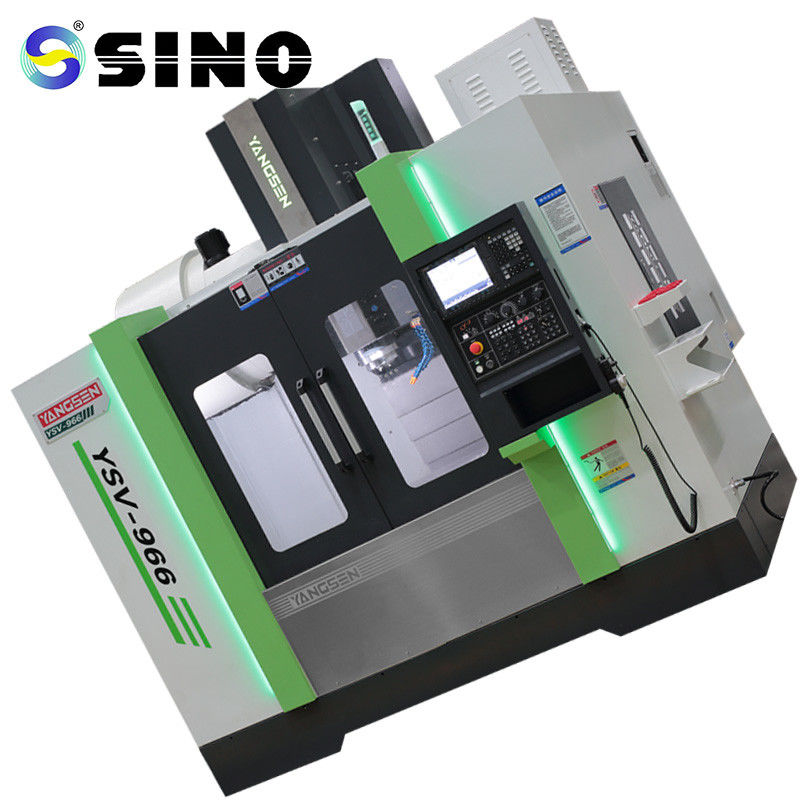

YSV-966 optical machine features:
1. The Japanese THK line rail is used, and the Y/Z line rail is 45 mm wide; 2. The Y-axis stroke is increased to 600 mm, and the worktable is made wider by 570 mm; 3.
3. The "herringbone"-shaped column design is as stable as Mount Tai, and the X-axis sliding seat has an extremely wide spread;
4. To prevent thermal movement, the three-axis uses a Japanese THK 40mm C3 grade screw and an NSK original bearing (3062), both of which operate in the 3+2 mode.
5. High-rigidity BBT spindle with ring spray design and 150mm outer diameter;
7. The machine tool's bed is composed of precise HT300 high-grade cast iron, and it uses a Taiwan-original ultra-high-speed cutting cylinder with a cutting time of 0.28S.
1. Swiveling Control Box * Semi-Enclosed Guard
2. Low Energy working light for the auto lubrication system
3. Transformer with volumetric type automatic lubricator
4. Spindle oil Coolant RS 232 code
5. Auto power off for air guns
6. Toolbox and rigid tapper
7. Leveling Block and Bolts * Operation Manual
8. Handwheel and Heat Exchange for Electric Cabinet
9. A mechanical coolant oil separator
2. Spindle Taper ( HSK/ISO/CAT/BT )
3. Spindle RPM
4. Automatic tool changer
5. Extended Head
5. Controller option ( SINUMERIK 840D )
6. ZF Gear box or Full Gear
Product image /photos:
the process of installing, commissioning, accepting, and training
1. Installation and commissioning: As soon as the machine tool is delivered, our service engineer will go to the customer's facility to do installation and commissioning as well as on-site training.
2. Customers have the choice of sending operators to our company for an initial training session that lasts about a week; following that, our business will provide on-site training at the customer's location during installation and commissioning.
3. Acceptance: In accordance with the ex-factory accuracy inspection table supplied by the supplier, accuracy acceptance examines the items that can be examined at the customer's location and the inspection items that do not satisfy the inspection requirements, such as positioning accuracy, spindle taper hole accuracy inspection stick test, etc.
For inspection and acceptance, the buyer will dispatch workers to the supplier's factory.
Concept of after-sales service
1. Pre-sales service: Sales professionals from Janssen will discuss with clients the best processing options, including tool and fixture selection, option configuration, and machine tool selection.
administration of cutting fluids, lubricant administration, and other services. providing turnkey projects as well.
2. Response time for maintenance: We are equipped with a service crew of up to 26 personnel and a fully functional service van. We will reply within two hours of receiving the user's failed notification.
3. Parts stock: In Xiamen, Janssen has a specialist production facility and an extensive inventory of parts. To give users the quickest repair parts, each office keeps stockpiles of commonly used parts.
4. Maintenance of machine tools: All machine tools that are covered by a warranty period receive free maintenance services, and machine tools that are not covered by a warranty can pay affordable and fair fees for maintenance services. Plan the equipment management and maintenance process based on customer needs.
5. Maintenance fees after the warranty has expired: The standard for billing is made apparent at the actual cost, only the cost is incurred, and the user is treated with the concepts of openness, fairness, and fairness.
6. Special old user service department: closely monitor machine tool use and promptly address maintenance problems.
7. Maintenance oversight: The general manager also functions as the after-sales service department's director, monitoring the maintenance services' quality in real time and defending clients' rights.
operating environment for machines
1. 380V 10%, 15%; 50Hz 1Hz; three-phase AC power supply
2. The outside temperature is 840°C.
3. Humidity relative: 80%
4. 0.6 to 0.8 MPA for the air source pressure
