|Name:||3 AXES Vertical Machine Center||Material:||Metal|
|Suitable For:||Cutting Machine/milling Machine||Type:||VERTICAL|
|Max. Spindle Speed (r.p.m):||10000 R.p.m||Width Of Bed (mm):||550 Mm|
|Spindle Motor Power(kW)::||12000||Number Of Axes:||3 Axes|
|Travel (X Axis)(mm):||850 Mm||Travel (Z Axis)(mm):||550 Mm|
|Positioning Accuracy (mm):||±0.005||Repeatability (X/Y/Z) (mm):||±0.003|
CNC Vertical Machining Center 3 Axis,
SINO Milling CNC Vertical Machining Center

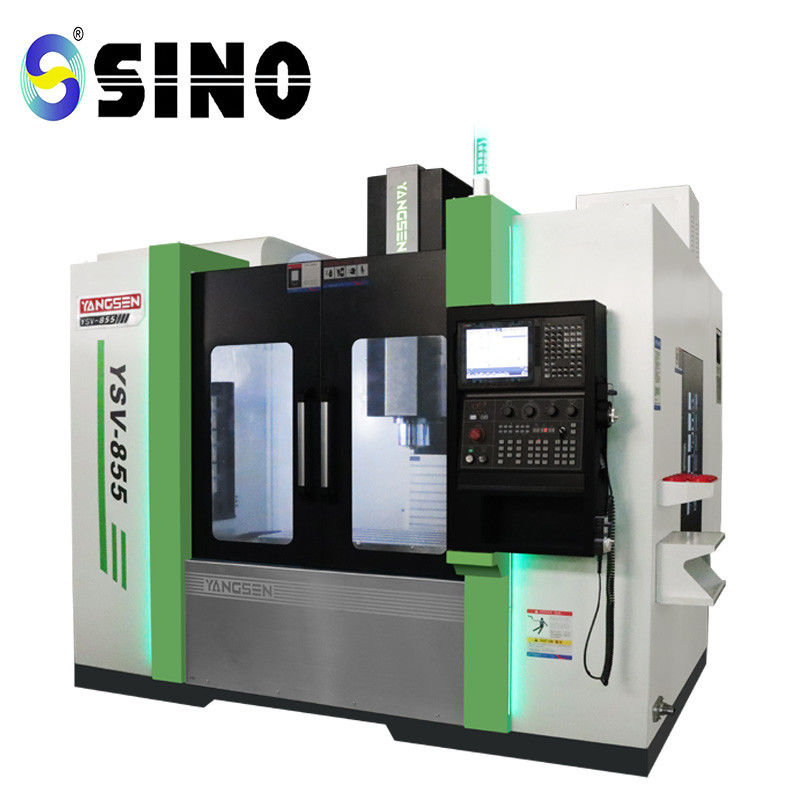

SINO CNC 3 axis YSV 855 Vertical Machining Center CNC Vertical Milling Machine
1. Semi-Enclosed Guard * Swiveling Control Box
2. A low-energy lubricating system operating light for the car
3. A transformer with an automatic volumetric lubricator
4. The RS 232 code for the spindle oil coolant
5. Air gun auto-off feature
5. A stiff tapper and a toolbox
6. Leveling block and user guide
8. A handwheel for an electric cabinet with a heat exchanger
9. A mechanical oil separator for coolant
Excellent performance from a machine tool
1. Taiwan's frequency converter tool magazine drastically improves processing efficiency by cutting tool change time to just 1.4 seconds;
2. Standard features include all three axes, rapid and precise positioning, and powerful torque generation;
3. In comparison to other brands of the same model, the spindle motor is equipped as standard with an 11–15KW high–torque generalized motor, making it particularly ideal for heavy cutting.
4. The machine tool parts are manufactured by a trustworthy business using a well-known brand and have the most advanced designs available right now.
Characteristics of optomechanisms
1. The X-axis moveable seat has an exceptionally wide spread, and the "herringbone" column design is as sturdy as Mount Tai.
2. The three axes use NSK original bearings (3062), which are pre-tensioned in the 3+2 mode, and C3 grade screws to prevent thermal displacement.
3. A 150mm-diameter, high-rigidity BBT40 spindle with a ring spray design; an accurate HT300 high-grade cast iron bed; and the use of Taiwan's own ultra-high-speed cutting cylinder, which allows the cutting time to reach 0.28 seconds.
2. (HSK/ISO/CAT/BT) Spindle Taper
Spindle RPM 3.
4. An autotool changer
5 Lengthened Head
Optional controller (SINUMERIK 840D) 6.
7. Full Gear or ZF Gear box
Product image /photos:
Installation, commissioning, training and acceptance
1. Installation and commissioning: After the machine tool arrives at the customer's factory, our service engineer will go to the customer's factory in time to carry out installation and commissioning and on-site training. 2. Customers can choose to send operators to our company to be responsible for the preliminary training for about a week, and then our company will conduct on-site training at the customer's place during installation and commissioning. 3. Acceptance: Accuracy acceptance, according to the ex-factory accuracy inspection table provided by the supplier, inspect the items that can be inspected at the customer's place, and inspect the inspection items that do not meet the inspection conditions, such as positioning accuracy, spindle taper hole accuracy inspection stick test Etc., no testing at the demand side, or negotiation between the two parties
The buyer will send personnel to the supplier's factory for inspection and acceptance.
After-sales service concept
1. Pre-sales service: Janssen's sales team will provide users with the best processing solutions, including machine tool selection, option configuration, tool and fixture selection,
Lubricating oil, cutting fluid management and other series of services. And can provide turnkey projects.
2. Maintenance response time: Our company has a service team of up to 26 people and is equipped with a complete service vehicle. After receiving the user's notification of failure, we will respond within 2 hours.
3. Parts inventory: Janssen has a special production workshop and parts inventory in Xiamen, with strong strength and complete inventory. There are commonly used parts inventories in each office to provide users with the fastest repair parts.
4. Machine tool maintenance: All machine tools within the warranty period enjoy free maintenance services, and machine tools outside the warranty period can purchase maintenance services at economical and reasonable prices. And according to customer needs, plan equipment management and maintenance process.
Machine working conditions
1. Three-phase AC power supply: 380V±10%, -15%; 50Hz±1Hz
2. Ambient temperature: 8～40Cº
3. Relative humidity: ≤80%
4. Air source pressure: 0.6～0.8 MPA
