Product Details:
|
| Name: | Display Digital Readout Linear Encoder Sino SDS5-4VA | Number Of Axis: | Measurement Device With Four Axes |
|---|---|---|---|
| Color: | Grey | Signal: | Digital Readout Kits: TTL / RS422 |
| Voltage: | AC100-240V/50-60Hz Digital Display Controller | Suitable For: | Milling Machine, Boring Machine, EDM Machine |
| Resolution: | 1um,5um,0.5um | Material: | Metal |
| High Light: | DRO SINO Lathe Digital Readout,SDS5-4VA Lathe Digital Readout |
||
4 Axis Glass Linear Scale DRO SINO SDS5-4VA Lathe Digital Readout Counter System
In DRO, there is also a function for path summarization. After the program is chosen, it is immediately employed in milling machines, precision coordinate boring machines, ground boring machines, precision boring machines, precision grinding machines, lathes, EDM, and other various specific functions.
Digital Readout DRO Functions for the SDS5-4VA:
Compensation for Non-Linear Errors
Positioning a PCD Hole Around a Circumference
Auxiliary Zero Position Function for 200 Points
ROM disc with a high capacity for storage
RS232-based real-time coordinate transmission
USB file transmission capabilities
This system uses four coordinate systems, including the machine coordinate system.
SINO SDS5-4VA digital readout system specifications plus optical linear scale
Specification
SINO's SDS5-4VA Digital Readout System
Form: DRO Luxury Form
input on 4 axes
Output signal: TTL/RS-422
dwelling: metal
Glass scales for lathes, milling, drilling, grinding, and EDM machines, whether manual or CNC
Instrument for Determining Position for Single, Three, or Four Axis Grating Scale
Garanties include CE, ROHS, and ISO 9001.
Class of Sealing Protection IP67
dependable and durable, easy to install, and user-friendly
Report on the machine test is provided.
| 1 PC | 3 Axis LED digital readout SDS5-4VA |
| 1 PC | Protection cover |
| 1 PC | Instruction Manual (English) |
| 1 PC | Cable |

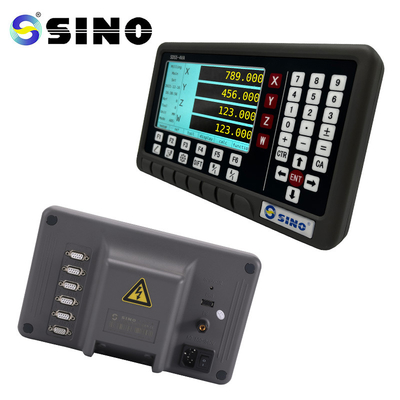

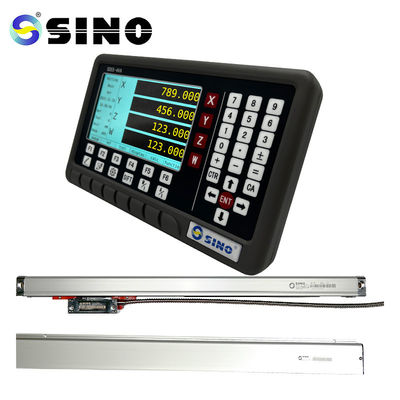

Product image /photos:
The rack in the picture is optioned, not standard product.
