Product Details:
|
| Item Name: | SINO KA500 Optical Linear Scale | Application: | Linear Encoder With Digital Readout |
|---|---|---|---|
| Usage: | Scaling Position Sensor | Customized Length: | 70mm/120mm/170mm/220mm |
| Length: | 320mm/370mm/420mm/470mm | Material: | Aluminum |
| Function: | EDM/Lathe/Grinding/Boring Machine | Resolution: | 0.5/1/5 μm |
| High Light: | SINO KA500 Glass Linear Scale,CNC Encoder Glass Linear Scale |
||

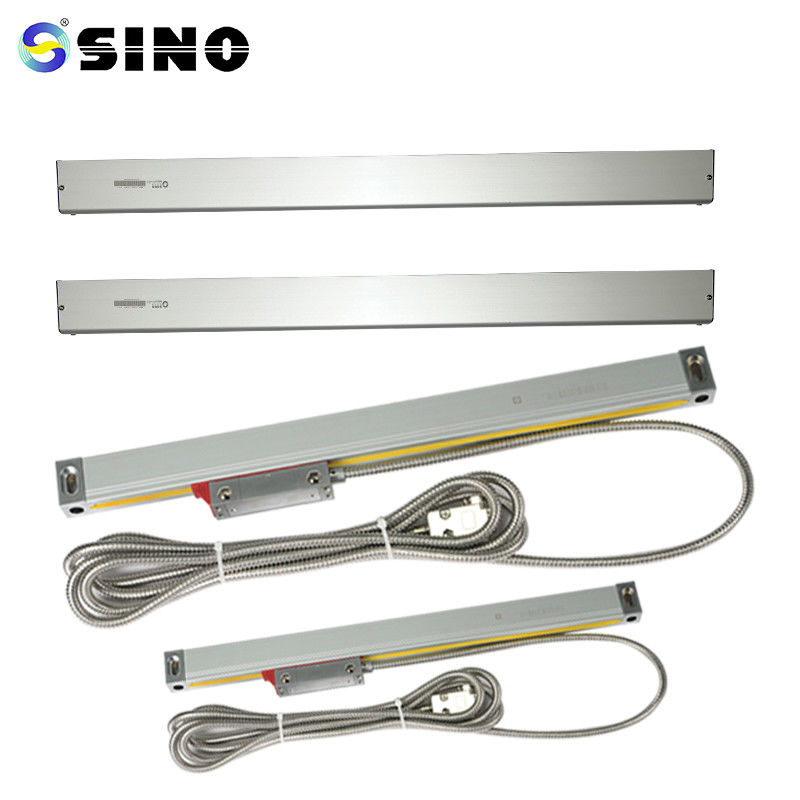

SINO KA500 Glass Linear Scale CNC Linear Encoder Scale for Lectura Digital 5um
Package contains:
Linear Glass Scale, KA500-470mm, 1 piece
Available Resolution: 0.5/1/5 m.
According to the requirements of the users, customized encoder lengths (L0) can be offered.(Length:70-470mm)
The reading head position of the KA500 linear scale is determined using an incremental optical encoding technique. Usually, it consists of a glass or metal scale and a read head that moves along the scale in sync with the movement of the machine part or object being measured. The graduations or marks on the scale are detected by the read head's photoelectric sensor and light source.
| Model | L0 | L1 | L2 | Model | L0 | L1 | L2 |
| KA500-70 | 70 | 172 | 182 | KA500-320 | 320 | 422 | 432 |
| KA500-120 | 120 | 222 | 232 | KA500-370 | 370 | 472 | 482 |
| KA500-170 | 170 | 272 | 282 | KA500-420 | 420 | 522 | 532 |
| KA500-220 | 220 | 322 | 332 | KA500-470 | 470 | 572 | 582 |
| KA500-270 | 270 | 372 | 382 |
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
Detail Information:
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
