|Item Name:||Linear Optical Scale SINO KA500||Application:||Digital Readout Linear Encoder|
|Usage:||Position Sensor Scaling||Customized Length:||70mm/120mm/170mm/220mm|
|Function:||EDM/Lathe/Grinding/Boring Machine||Resolution:||0.5/1/5 μm|
Glass Linear CNC Linear Encoder,
1um Glass Linear CNC Linear Encoder
5um/1um/0.5um SINO KA500 Glass Linear Scale CNC Linear Encoder Scale for Digital Readout

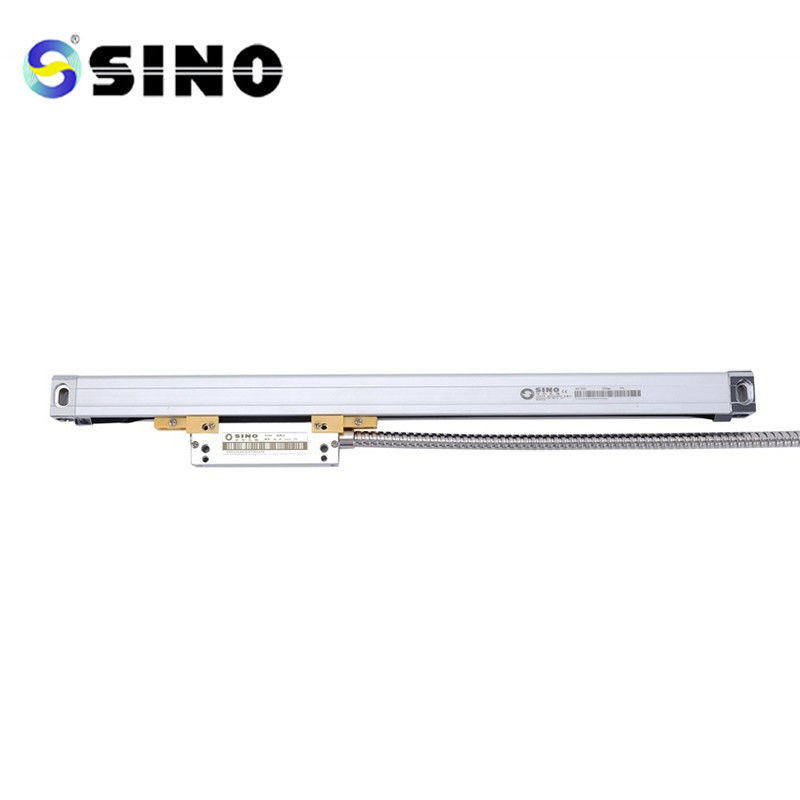

KA-500 is a mini-encoder specially designed for the machine tool which has a low
installation size and small operation space. It can meet the needs of those customers
who have requirements for position. The length is 70~470mm.
Glass linear scale, 1 piece, KA500-470mm
0.5/1/5 m of resolution is available.
Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
1. Before use, the user must read the General Description, Safety Considerations and
all the contents in Chapter 1 ~ 3.
2. Except the General Description, Safety Considerations and all the contents in
Chapter 1 ~ 3, the technicians for installation, testing and repair must thoroughly
understand all the contents in Chapter 4~5.
3. This Operating Instructions is only applicable to SINO’s KA series integrated
4. Please read the Safety Considerations below. It is critical information related to
safe use of your linear encoder.
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
