|Item Name:||Optical Encoder Scale SINO KA500||Application:||Digital Readout System Glass Linear Encoder|
|Usage:||Position Sensor Scaling||Customized Length:||70mm/120mm/170mm/220mm|
|Function:||EDM/Lathe/Grinding/Boring Machine||Resolution:||0.5/1/5 μm|
Optical Encoder Glass Linear Scale,
Glass Linear Scale For Digital Readout

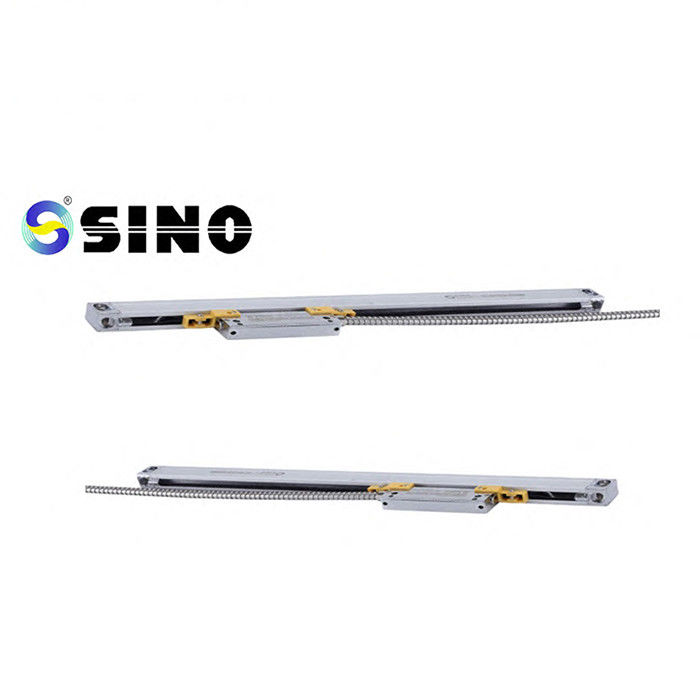

SINO KA500 Optical Encoder Glass Linear Scale CNC Linear Encoder Scale for Digital Readout
The KA-500 is a little encoder that was created especially for machine tools with restricted installation and work areas. Customers with position-specific needs can have their needs met. The size is 70 mm by 470 mm.
Glass linear scale, 1 piece, KA500-470mm
0.5/1/5 m of resolution is available.
Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)
L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole
L2: Encoder overall dimension
The user is required to read the General Description, Safety Considerations, and
all of Chapter 1's contents 3.
2. Aside from the General Description, Safety Considerations, and the entirety of the information in
The technicians for installation, testing, and repair must carefully follow Chapters 1 through 3.
comprehend every section of Chapters 4–5.
3. Only SINO's KA series of integrated circuits are covered by these operating instructions.
the linear encoder.
Please take a moment to read the safety considerations below. It contains vital details about
use of your linear encoder safely.
All linear scales will be tested before delivery. Here is a sample of a scale's testing report.
